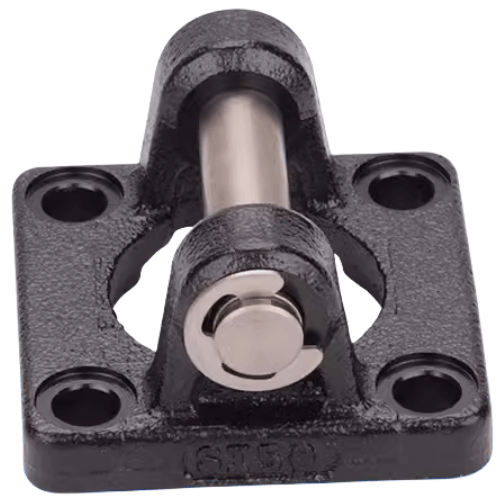

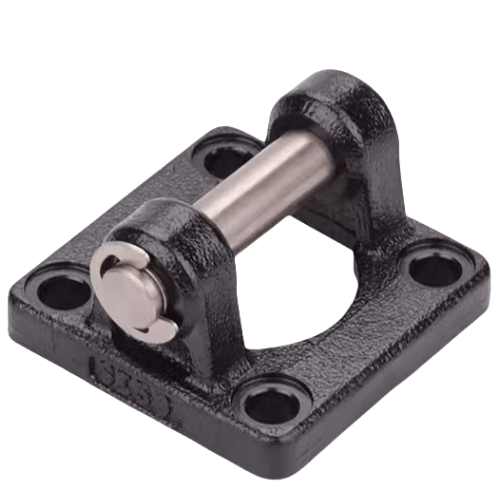

Airtac F-SI-CB Double Lug Bracket Assembly Kit F-SI63CB
AirTAC F-SI-CB Double Ear Mounting Bracket Kit F-SI63CB Technical Details
- Model: F-SI63CB
- Series: F-SI-CB Standard Kit
- Material: Aluminum alloy ADC12 (zinc alloy option available)
- Surface treatment: Black anodized (8-12μm thickness)
- Compatible cylinder bore: Φ63mm
- Mounting hole diameter: 7.5mm (designed for M6 screws)
- Center distance between ears: 92±0.2mm
- Load capacity: 150kg static / 80kg dynamic
- Vibration resistance: 5-2000Hz (IEC 60068-2-6)
- Temperature range: -40℃ to 120℃
- Weight: 385±10g
- Dimensions: 115mm(L) × 63mm(W) × 38mm(H)
- Mounting torque: 12-15N·m (M6 screws)
- Corrosion resistance: 96hrs salt spray test (ASTM B117)
- Package contents: Bracket ×1, M6×20 mounting screws ×4, anti-vibration washers ×4
Heavy-duty dual ear mounting solution for cylinder stabilization, featuring precision CNC-machined alignment surfaces and reinforced rib design. The optimized weight distribution minimizes vibration transmission while maintaining ISO 6432 compliance. Includes pre-lubricated wear pads for smooth linear motion adjustment.
- Multi-axis robotic arm joint stabilization
- High-cycle automated packaging machinery
- Plastic injection molding machine ejectors
- Automotive assembly line positioning systems
- Semiconductor wafer handling equipment
Installation guidance:
Use torque wrench for even force distribution. Apply thread locker (Loctite 243 recommended)
on screws. Perform alignment check with 0.02mm feeler gauge between bracket and mounting surface.
Re-torque after 50 operational hours.
| Property | Property Value |
|---|---|
| sku | F-SI63CB |
