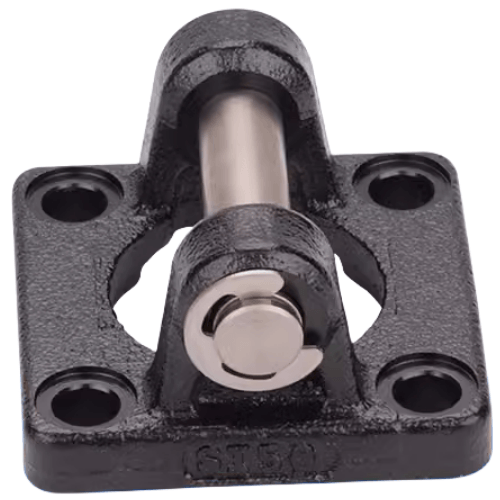

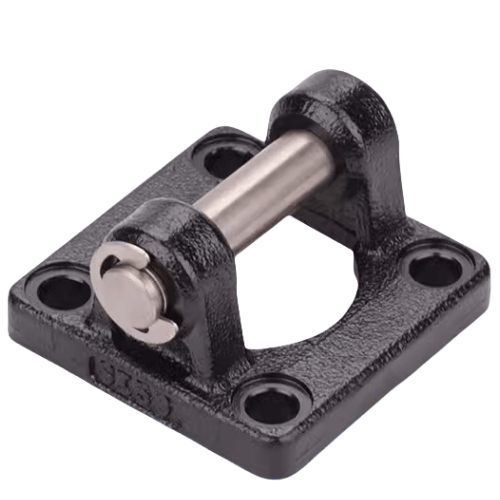

Airtac F-SI-CB Double Lug Bracket Assembly Kit F-SI80CB
AirTAC F-SI-CB Double Ear Mounting Bracket Kit F-SI80CB Technical Details
- Full model designation: F-SI80CB
- Bracket type: Universal double-ear fixed mount
- Compatible cylinder series: SI series standard cylinders
- Designed cylinder bore: Ø80mm
- Material: Aluminum alloy ADC12 with black anodized finish
- Mounting hole spacing: 80±0.2mm (center-to-center)
- Bolt specifications: M8×1.25 mounting threads (4 holes)
- Surface hardness: ≥HV80 after treatment
- Static load capacity: 2,500N (axial direction)
- Dynamic load capacity: 1,800N (vibration resistance)
- Weight: 685g ±2%
- Dimensions: 125mm(L) × 92mm(W) × 28mm(H)
- Operating temperature: -20℃ to 120℃
- Corrosion resistance: 96hrs salt spray test passed
- Included components: Mounting bracket ×1, M8 flat washers ×4, Installation guide ×1
Heavy-duty aluminum mounting solution engineered for stable cylinder fixation in high-moment applications. Features precision CNC-machined surfaces (Ra≤3.2μm) for perfect alignment, with through-hardened steel bushings preventing thread deformation during torque application. The asymmetric ear design allows flexible orientation adjustments during installation.
- Pneumatic press brake tooling systems
- Automated assembly line clamping mechanisms
- Packaging machine vertical lift actuators
- Robotic welding arm position locks
- Semiconductor handling equipment guides
Installation protocol:
Apply 22-25N·m torque using calibrated wrench in crisscross pattern.
Use Shim Kit F-SH8 when mounting on uneven surfaces (>0.2mm variance).
Perform alignment check with dial indicator (max 0.05mm runout allowed).
| Property | Property Value |
|---|---|
| sku | F-SI80CB |
