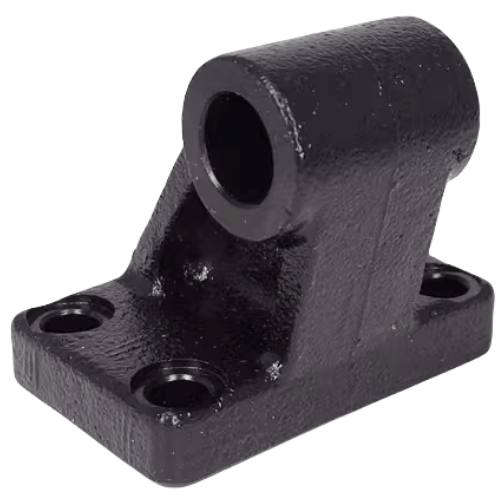

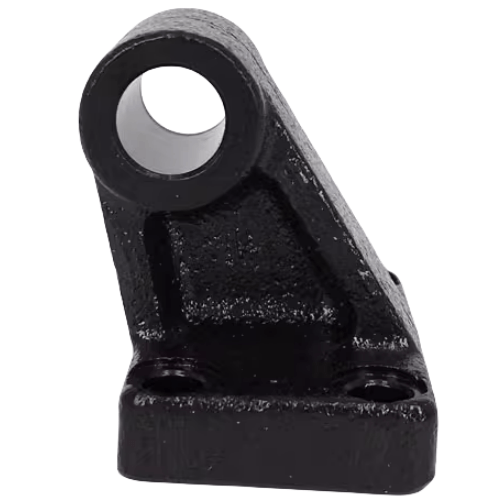

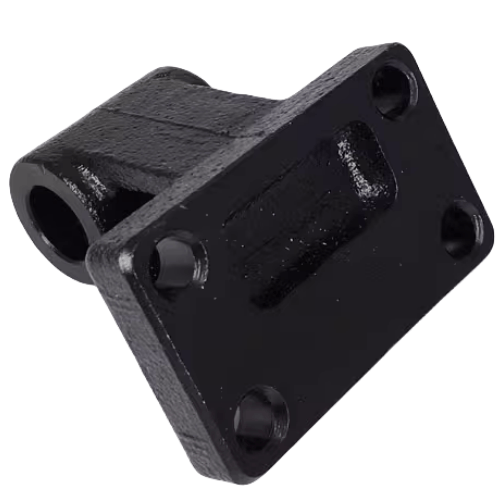

Airtac F-SI-CR Single Lug Mounting Bracket Assembly F-SI32CR
Category: Cylinder Accessories
Brand: AirTAC
Series: F-SI-CR Single Lug Bracket Finished Assembly Kit
Ready-to-install mounting bracket assembly for cylinder applications. Engineered with high-rigidity materials for secure positioning and vibration resistance in pneumatic systems. Precision alignment ensures optimal cylinder performance, while pre-drilled mounting holes comply with ISO/VDMA standards. Includes pre-assembled components (bracket, fasteners, and alignment pins) to streamline maintenance and retrofitting processes.
AirTAC F-SI-CR Series Single-Ear Bracket Kit F-SI32CR Technical Details
- Model: F-SI32CR (Complete Bracket Package)
- Type: Single-ear fixed mounting bracket assembly
- Material: Black anodized ADC12 aluminum alloy
- Mounting Hole: M6 threaded hole (pre-installed)
- Compatible Cylinder Bore: Φ32mm standard
- Static Load Capacity: ≤1,200N
- Dynamic Load Capacity: ≤800N (under cyclic loading)
- Temperature Range: -20℃ to 100℃
- Surface Treatment: Hard anodized (HV 400±50)
- Protection Rating: IP54 (standard configuration)
- Weight: 185g ±5g (with included hardware)
- Dimensions: 62mm(L) × 42mm(W) × 28mm(H)
- Fastener Torque: 2.5-3.0N·m (includes M6 fasteners)
Precision-engineered mounting system with integrated vibration dampening and corrosion-resistant properties. The asymmetrical single-ear configuration enables 180° positional flexibility without compromising structural stability. Comes pre-assembled with stainless steel M6×16 mounting screws featuring pre-applied anti-loosening washers.
- CNC machine robotic end-effector attachments
- Linear motion system support brackets
- Cleanroom-compatible vision system camera mounts
- Conveyor line sensor bracket installations
- Packaging equipment pneumatic cylinder alignment
Installation Guidelines:
Recommended thread locker (sold separately) for high-vibration applications.
Maintain maximum ±3mm lateral offset from center axis. Torque values should not
exceed 4N·m to avoid fastener thread damage.
| Property | Property Value |
|---|---|
| sku | F-SI32CR |
