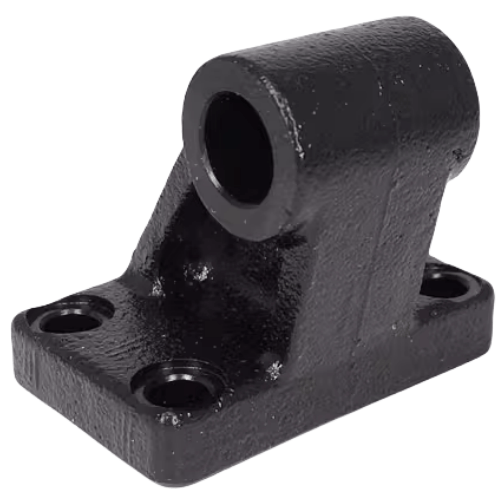

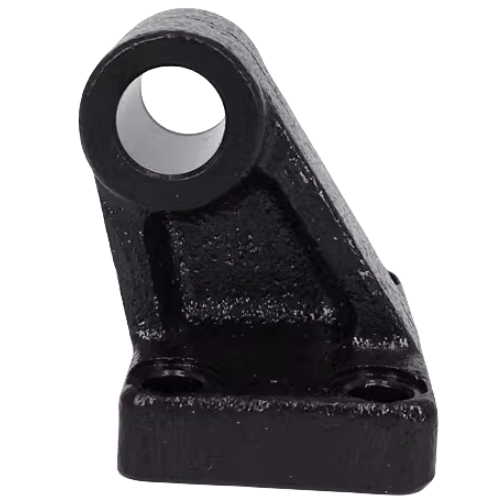

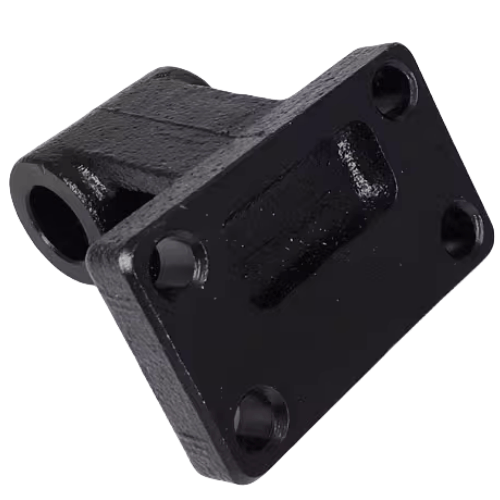

Airtac F-SI-CR Single Lug Mounting Bracket Assembly F-SI40CR
Category: Cylinder Accessories
Brand: AirTAC
Series: F-SI-CR Single Lug Bracket Finished Assembly Kit
Ready-to-install mounting bracket assembly for cylinder applications. Engineered with high-rigidity materials for secure positioning and vibration resistance in pneumatic systems. Precision alignment ensures optimal cylinder performance, while pre-drilled mounting holes comply with ISO/VDMA standards. Includes pre-assembled components (bracket, fasteners, and alignment pins) to streamline maintenance and retrofitting processes.
AirTAC F-SI-CR Single Ear Bracket Kit F-SI40CR Technical Details
- Model: F-SI40CR (Complete Kit)
- Type: Single ear fixed bracket with reinforced structure
- Material: Aluminum alloy ADC12
- Surface treatment: Black anodized oxidation
- Mounting hole diameter: φ6.6±0.1mm
- Thread specification: M6×1.0 internal thread
- Max load capacity: 980N (Static)/490N (Dynamic)
- Temperature range: -20℃ to 120℃
- Installation torque: 14.7-19.6N·m
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- Weight: 320g ±5g
- Dimensions: 40mm(W) × 40mm(D) × 20mm(H)
- Package includes: Bracket body, M6×16 hex socket screws (2pcs), anti-loosening washers
Heavy-duty single ear mounting bracket designed for secure pneumatic cylinder fixation in high-vibration environments. Features precision-machined alignment grooves and wear-resistant anodized coating. Compatible with ISO 15552 cylinder standards.
- Industrial robot arm joint mounting
- Packaging line cylinder stabilization
- Automated assembly fixture bases
- Material handling equipment frameworks
- Plastic injection molding machine actuators
Installation protocol:
Use torque wrench for precise fastening. Apply medium-strength thread locker (Loctite 243 recommended)
on screws. Ensure bracket's ear orientation matches cylinder's force direction. Perform torque check
after 24hrs of initial operation.
| Property | Property Value |
|---|---|
| sku | F-SI40CR |
