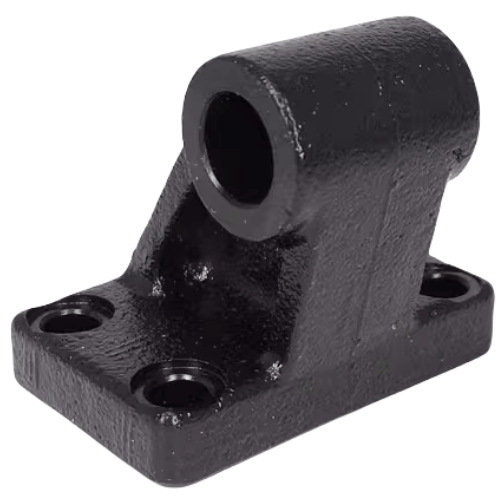

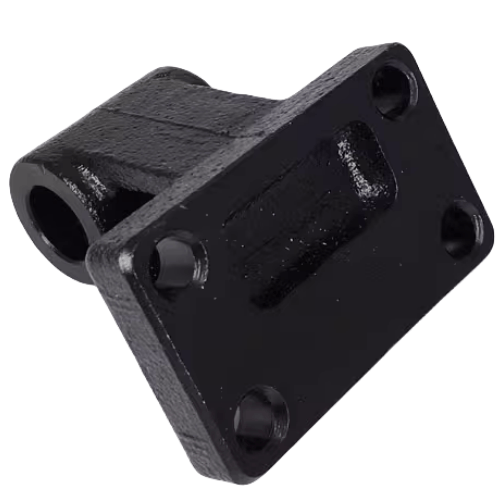

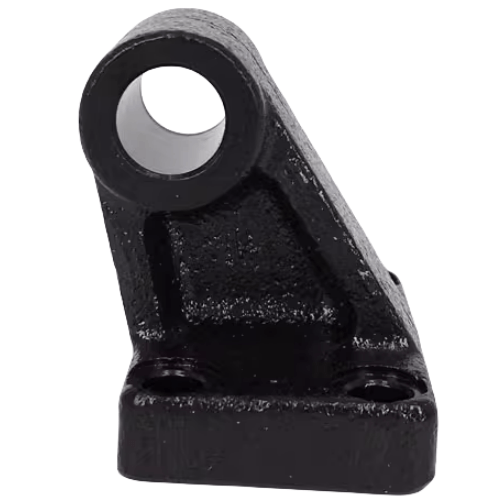

Airtac F-SI-CR Single Lug Mounting Bracket Assembly F-SI50CR
Category: Cylinder Accessories
Brand: AirTAC
Series: F-SI-CR Single Lug Bracket Finished Assembly Kit
Ready-to-install mounting bracket assembly for cylinder applications. Engineered with high-rigidity materials for secure positioning and vibration resistance in pneumatic systems. Precision alignment ensures optimal cylinder performance, while pre-drilled mounting holes comply with ISO/VDMA standards. Includes pre-assembled components (bracket, fasteners, and alignment pins) to streamline maintenance and retrofitting processes.
AirTAC F-SI-CR Series Single Ear Fixing Bracket Kit - F-SI50CR Technical Details
- Model: F-SI50CR
- Type: Pre-assembled single ear mounting bracket kit
- Material: Aluminum alloy ADC12 (anodized finish)
- Surface treatment: Black electrophoretic coating
- Mounting hole diameter: φ12.5mm (+0.2/-0 mm tolerance)
- Compatible cylinder series: SC/SU/SI 50mm bore size
- Max lateral load capacity: 1,470N (150kgf)
- Axial load capacity: 2,940N (300kgf)
- Fastener torque specification: 22-25N·m (M8 bolts)
- Vibration resistance: 49m/s² max (10-150Hz)
- Operating temperature: -20℃ to 80℃
- Weight: 850g ±2% (including mounting hardware)
- Dimensions: 98mm(L) × 68mm(W) × 42mm(H)
- Hardware included: M8×25 hex socket bolts (2pcs), lock washers
Heavy-duty aluminum mounting solution designed for high-cycle pneumatic cylinder installations. Features precision-machined contact surfaces (Ra≤3.2μm) and corrosion-resistant coating, ensuring stable positioning accuracy under continuous lateral forces. Pre-lubricated pivot points reduce wear during angular adjustments.
- Robotic arm joint articulation points
- Packaging line cylinder mounting in humid environments
- Vertical lift mechanisms requiring anti-vibration support
- Plastic injection molding machine ejector systems
- Automated welding equipment with frequent position changes
Installation protocol:
Apply 242 Loctite® on bolt threads before final torque application.
Ensure bracket base maintains 0.05mm flatness against mounting surface.
Re-torque after 50 operational hours.
| Property | Property Value |
|---|---|
| sku | F-SI50CR |
