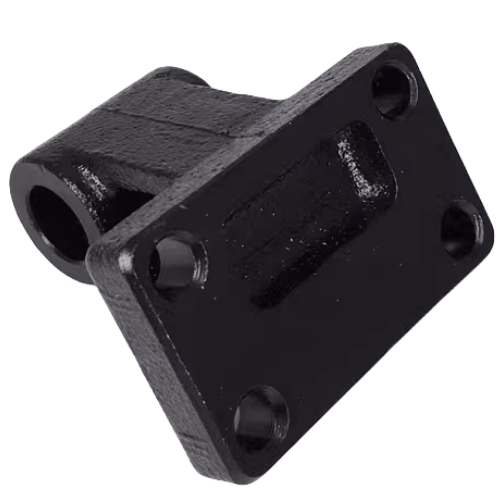

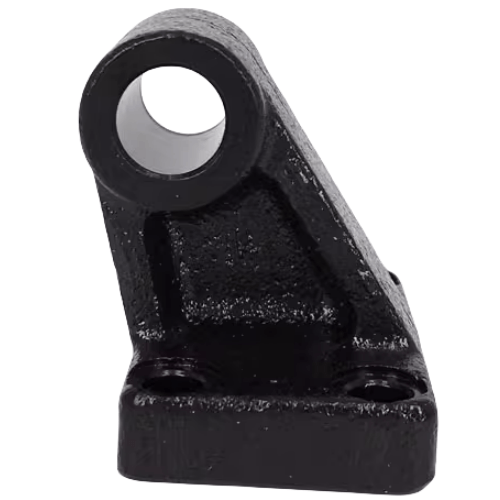

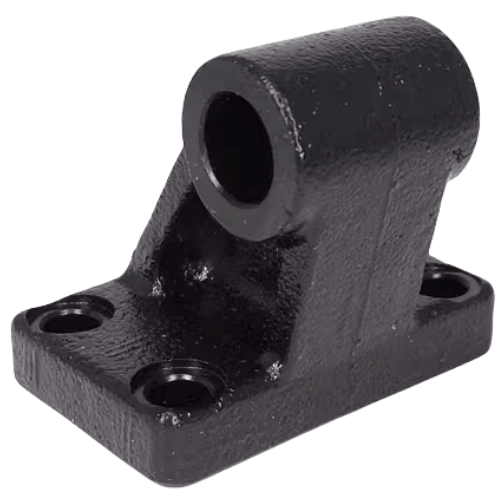

Airtac F-SI-CR Single Lug Mounting Bracket Assembly F-SI63CR
Category: Cylinder Accessories
Brand: AirTAC
Series: F-SI-CR Single Lug Bracket Finished Assembly Kit
Ready-to-install mounting bracket assembly for cylinder applications. Engineered with high-rigidity materials for secure positioning and vibration resistance in pneumatic systems. Precision alignment ensures optimal cylinder performance, while pre-drilled mounting holes comply with ISO/VDMA standards. Includes pre-assembled components (bracket, fasteners, and alignment pins) to streamline maintenance and retrofitting processes.
AirTAC F-SI-CR Single Ear Fixing Bracket Kit F-SI63CR Technical Details
- Model: F-SI63CR
- Type: Single ear mounting bracket kit (pre-assembled)
- Material: Aluminum alloy ADC12
- Surface treatment: Anodized (black)
- Compatible cylinder bore: Φ63mm
- Mounting hole specifications: M6 threaded holes (4x)
- Torque capacity: 20-25 Nm (recommended tightening torque)
- Temperature resistance: -20℃ to 150℃
- Corrosion protection: Salt spray test passed 96hrs
- Weight: 0.68 kg ±2%
- Dimensions: 120mm(L) × 48mm(W) × 35mm(H)
- Included components: Bracket body, M6x16 mounting screws (4pcs), anti-vibration washers
Heavy-duty single ear mounting solution designed for stable cylinder fixation in high-vibration environments. Features precision-machined alignment grooves and reinforced stress points, compatible with ISO 15552 standard cylinders. Pre-lubricated threads ensure consistent torque application during installation.
- Industrial robotic arm joint stabilization
- Automated assembly line cylinder mounting
- Packaging machinery linear actuator support
- Plastic injection molding machine component fixation
- CNC equipment pneumatic system installations
Installation protocol:
Use calibrated torque wrench for even force distribution.
Apply thread-locking compound (medium strength) for permanent installations.
Align cylinder axis within ±0.5° tolerance using built datum surfaces.
| Property | Property Value |
|---|---|
| sku | F-SI63CR |
