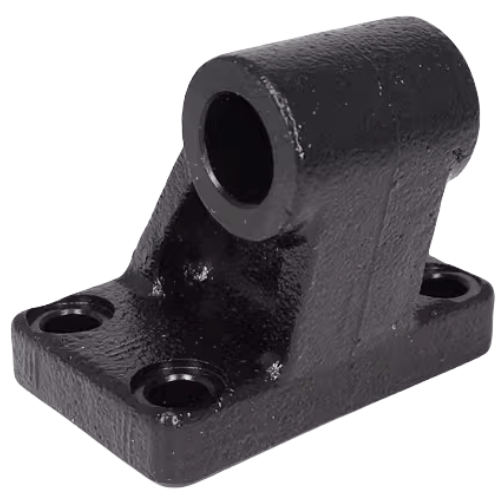

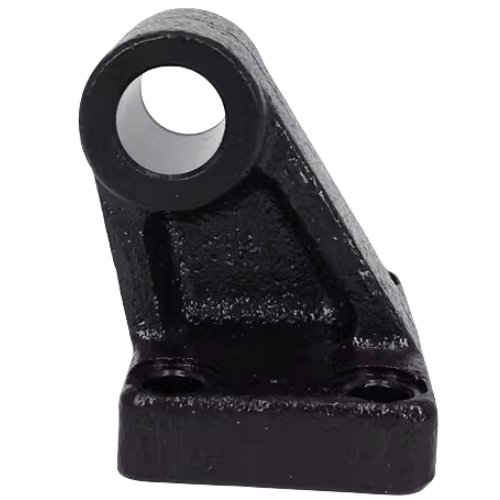

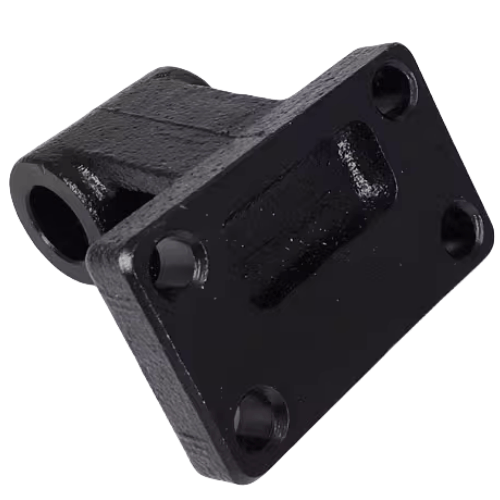

Airtac F-SI-CR Single Lug Mounting Bracket Assembly F-SI80CR
Category: Cylinder Accessories
Brand: AirTAC
Series: F-SI-CR Single Lug Bracket Finished Assembly Kit
Ready-to-install mounting bracket assembly for cylinder applications. Engineered with high-rigidity materials for secure positioning and vibration resistance in pneumatic systems. Precision alignment ensures optimal cylinder performance, while pre-drilled mounting holes comply with ISO/VDMA standards. Includes pre-assembled components (bracket, fasteners, and alignment pins) to streamline maintenance and retrofitting processes.
AirTAC F-SI-CR Single Ear Fixing Bracket Kit F-SI80CR Technical Details
- Model: F-SI80CR (Complete Kit)
- Material: Aluminum alloy ADC12 with anodized surface treatment
- Mounting Hole Spacing: 80±0.2mm (Designed for 80mm bore cylinders)
- Bolt Specifications: M8×1.25 mounting thread
- Static Load Capacity: 1,200N (axial direction)
- Dynamic Load Capacity: 800N (axial direction)
- Surface Hardness: HV 400-450
- Temperature Range: -20℃ to 120℃ (continuous operation)
- Corrosion Resistance: 96hr salt spray test compliant
- Weight: 580g ±2% (including all mounting hardware)
- Dimensions: 112mm(L) × 42mm(W) × 68mm(H)
- Kit Includes: Bracket body, M8×20 hex socket screws (2pcs), flat washers, spring lock washers
Precision-engineered single ear mounting solution for cylinder fixation, featuring vibration-damping design and reinforced stress points. The zinc-nickel plated fasteners provide enhanced corrosion resistance in humid environments. Optimized for moment load distribution with ±0.5° angular adjustment capability.
- Pneumatic cylinder mounting in robotic welding arms
- Linear actuator installations for packaging machinery
- Vertical load support in semiconductor handling equipment
- Vibration-prone environments like CNC tool changers
- Mobile hydraulic/pneumatic systems requiring shock absorption
Installation protocol:
Apply 25-30N·m torque using calibrated wrench during assembly.
Use thread-locking compound on fasteners in high-vibration applications.
Ensure mounting surface flatness ≤0.1mm/mm².
