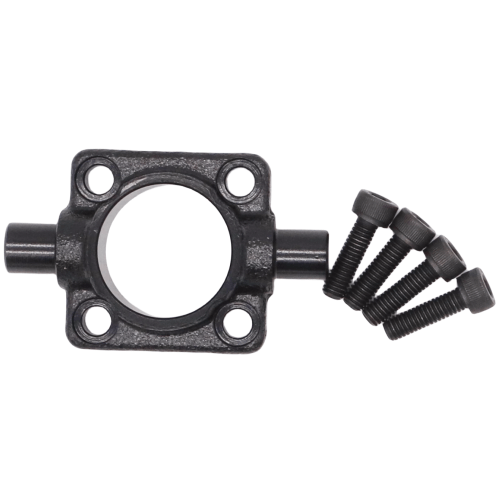

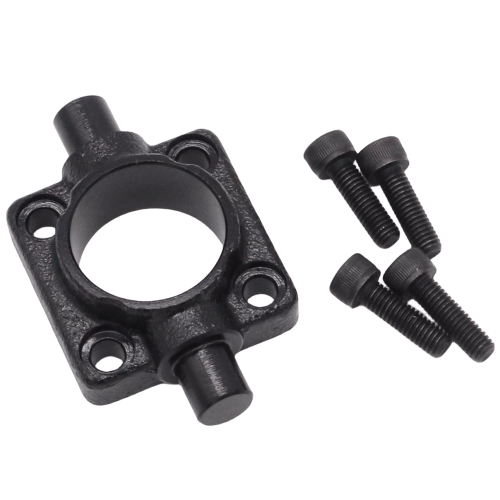

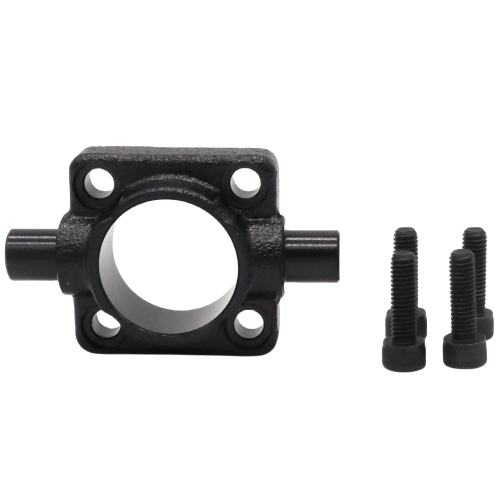

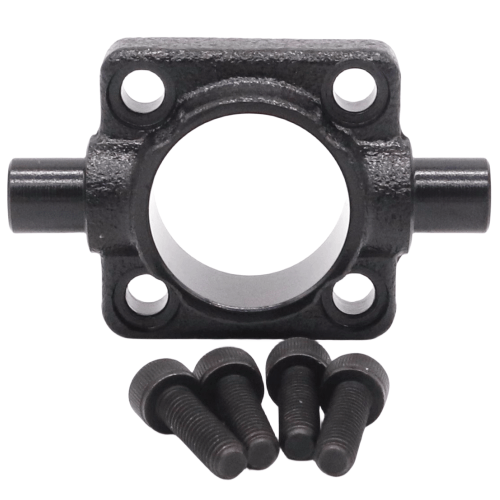

Airtac F-SI-FTC End Cover Trunnion Bracket Assembly F-SI32FTC
$18.57
Regular price
$26.07
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-SI32FTC
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Product Name: F-SI-FTC End Cap Trunnion Bracket Complete Kit
Category: Pneumatic Cylinder Accessories
Brand: AIRTAC
Series: F-SI-FTC
Description:
The AIRTAC F-SI-FTC End Cap Trunnion Bracket Complete Kit is engineered for simplified mounting and enhanced structural integrity in pneumatic cylinder applications. This pre-assembled unit integrates precision-machined trunnion brackets with reinforced end caps, featuring standardized mounting interfaces compliant with ISO 15552 cylinder profiles. The kit includes corrosion-resistant fasteners and alignment bushings, ensuring precise radial load distribution and axial stability. Its modular design facilitates rapid installation while maintaining optimal moment resistance during dynamic cylinder operation. Compatible with ø32-100mm bore sizes, the assembly undergoes rigorous quality control to meet IP65 protection standards for industrial environments.
Mounting guidance:
Apply 25-30Nm torque during installation using calibrated tools.
Lubricate pivot points with ISO VG32 hydraulic oil before operation.
Avoid side impact during alignment - use shim plates for angular compensation.
AirTAC F-SI-FTC End Cover Trunnion Bracket Kit F-SI32FTC Technical Details
- Model: F-SI32FTC (Complete assembly kit)
- Compatible cylinder series: SI series Ø32mm bore
- Material: Aluminum alloy 6063-T5 (hard anodized surface)
- Mounting type: Dual trunnion pivot with reinforced base
- Max static load capacity: 2,500N radial / 1,800N axial
- Pivot pin diameter: 8mm (hardened steel, zinc-nickel plated)
- Mounting hole spacing: 40±0.1mm (horizontal) × 26±0.1mm (vertical)
- Surface treatment: Matte black anodizing (Alodine 1200S compliant)
- Operating temperature: -20℃ to 100℃ (dry environment)
- Weight: 420g ±5% (complete assembly)
- Dimensions: 72mm(L) × 48mm(W) × 34mm(H) (excluding protrusions)
- Corrosion resistance: 500hr salt spray test passed
- Vibration resistance: 10-2000Hz, 15G acceleration
- Standards compliance: ISO 9001, RoHS 2.0
Heavy-duty trunnion bracket engineered for precise cylinder mounting in high-moment applications. Features anti-rotation grooves and wear-resistant pivot bushings (Oil-impregnated sintered bronze). Includes pre-assembled mounting hardware (Class 12.9 alloy steel bolts with Nord-Lock washers).
Installation Scenarios:
- Robotic arm joint articulation systems
- Packaging machine rotary index tables
- Automated welding equipment positioners
- Material handling pivot mechanisms
- Textile machinery tension control units
Mounting guidance:
Apply 25-30Nm torque during installation using calibrated tools.
Lubricate pivot points with ISO VG32 hydraulic oil before operation.
Avoid side impact during alignment - use shim plates for angular compensation.
Environmental specs:
- IP54 protection when used with compatible cylinder
- Max humidity: 95% RH (non-condensing)
- UV-resistant coating for indoor/outdoor use
