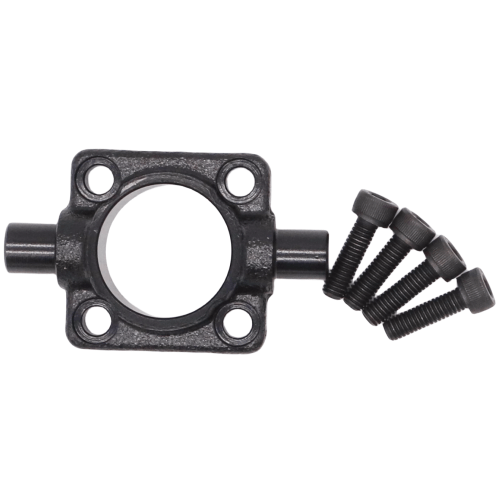

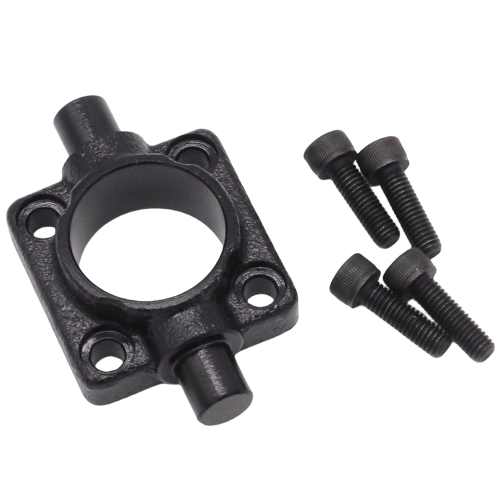

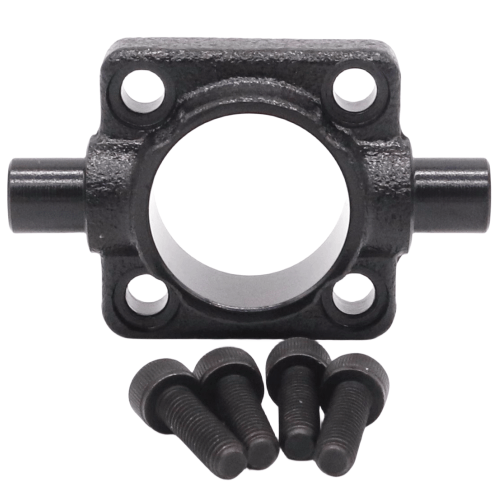

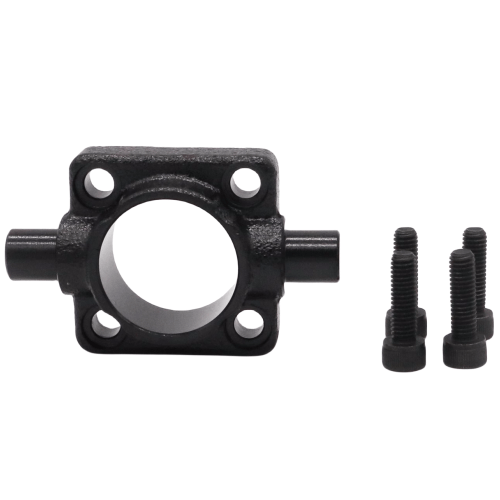

Airtac F-SI-FTC End Cover Trunnion Bracket Assembly F-SI63FTC
AirTAC F-SI-FTC End Cover Trunnion Bracket Kit F-SI63FTC Technical Details
- Model: F-SI63FTC (Complete assembly kit)
- Material: Aluminum alloy ADC12 with black anodized finish
- Mounting hole pattern: M6 screw threads (4x symmetrical)
- Piston rod compatibility: Ø10-16mm cylinders
- Maximum lateral load: 500N static / 300N dynamic
- Swivel angle: ±5° adjustment capability
- Surface hardness: HV 400±50
- Temperature resistance: -20°C to +120°C
- Vibration resistance: 10-2000Hz, 20m/s² max
- Corrosion protection: 500hr salt spray test compliant
- Weight: 0.45kg (including all hardware)
- Dimensions: 76mm(L) × 42mm(W) × 38mm(H)
Precision-machined trunnion mount solution for pneumatic cylinder stabilization, featuring anti-backlash design with integrated thrust washers. The hardened contact surfaces (HRC 45-50) ensure wear resistance during high-cycle operations. Includes pre-loaded stainless steel SHCS (socket head cap screws) with Loctite® 243 threadlocker applied.
- Robotic welding fixture positioning systems
- Packaging machine rotary index table supports
- Automated conveyor diverter arm pivots
- CNC tool changer cylinder alignment
- Solar panel tracking actuator mounts
Installation protocol:
Apply 6.5±0.5Nm torque during M6 screw fastening. Use alignment jig
(PN: AJ-FTC63) for multi-bracket installations. Lubricate pivot points
with ISO VG32 hydraulic fluid before initial operation.
