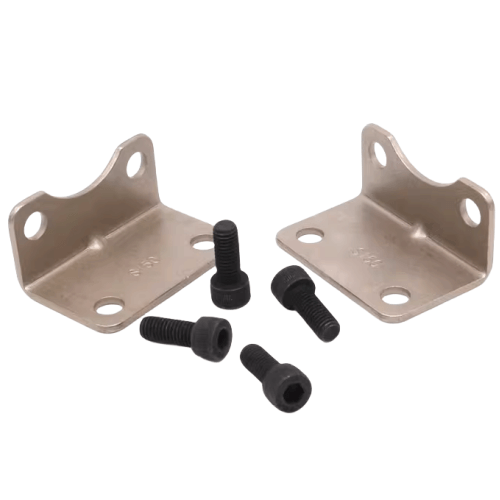

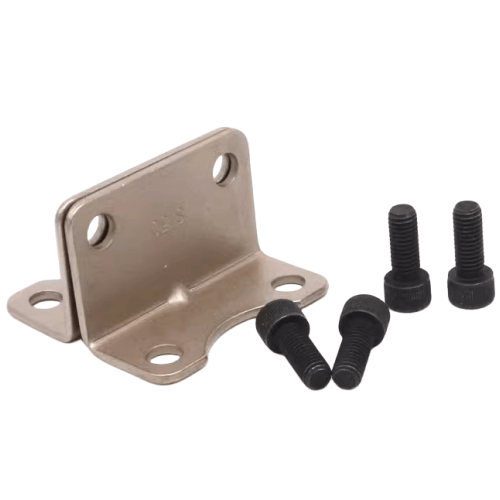

Airtac F-SI-LB Axial Fixing Bracket Assembly Kit F-SI100LB
Category: Cylinder Accessories | Brand: Airtac | Series: F-SI-LB
The Airtac F-SI-LB Axial Mounting Bracket Complete Kit is a precision-engineered cylinder accessory designed for rigid axial fixation of pneumatic cylinders in industrial automation systems. Featuring high-strength anodized aluminum alloy construction, this assembly ensures vibration resistance and corrosion protection in demanding environments. The kit includes pre-assembled components with standardized mounting interfaces, enabling seamless integration with F-SI series cylinders while maintaining strict coaxial alignment. Its compact design optimizes spatial efficiency in confined machinery layouts, and the modular structure simplifies maintenance operations. The product complies with ISO 6432 mounting specifications, making it ideal for applications requiring precise linear motion control in robotics, material handling, and automated production lines.
AirTAC F-SI-LB Axial Fixation Bracket Kit F-SI100LB Technical Details
- Model: F-SI100LB (Complete Kit)
- Type: Precision axial support bracket with anti-rotation design
- Material: Aluminum alloy AL6061-T6
- Radial load capacity: ≤850N
- Axial load capacity: ≤1,200N
- Mounting style: Flange-type dual-bolt fixation
- Shaft compatibility: Ø10mm linear shafts (h6 tolerance)
- Surface treatment: Hard anodized (25±3μm thickness)
- Operating temperature: -20℃ to 120℃
- Vibration resistance: 10-2000Hz, 20m/s² max
- Weight: 450g ±2% (including hardware)
- Dimensions: 100mm(L) × 50mm(W) × 30mm(H)
- Hardware included: M5×12 SHCS (2pcs), M5 washers (2pcs)
Heavy-duty axial stabilization solution for linear motion systems, featuring precision-machined alignment surfaces and hardened contact points. The integrated anti-backlash design maintains shaft concentricity within 0.02mm TIR under dynamic loads. Compatible with ISO 6432 standard guide rods.
- Linear actuator end-stop reinforcement
- 3D printer gantry axis stabilization
- CNC machine tool slide rail support
- Automated packaging line conveyor guides
- Semiconductor wafer handling robots
Installation protocol:
Apply 2.5-3.0Nm torque during bolt tightening using cross-pattern sequence.
Lubricate shaft contact area with lithium-based grease (NLGI #2) before assembly.
Perform concentricity verification with dial indicator post-installation.
| Property | Property Value |
|---|---|
| sku | F-SI100LB |
