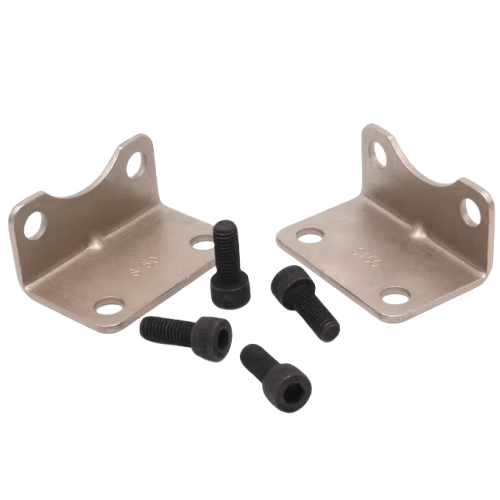

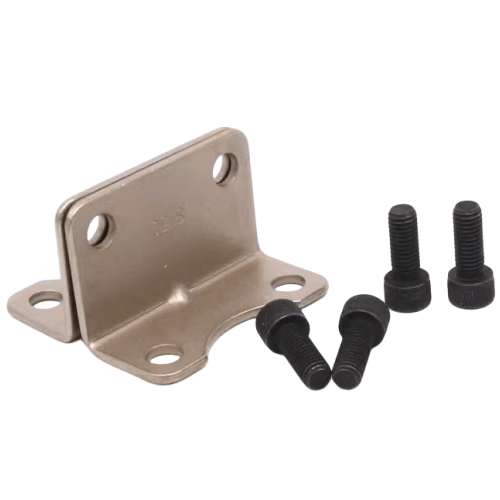

Airtac F-SI-LB Axial Fixing Bracket Assembly Kit F-SI125LB
Category: Cylinder Accessories | Brand: Airtac | Series: F-SI-LB
The Airtac F-SI-LB Axial Mounting Bracket Complete Kit is a precision-engineered cylinder accessory designed for rigid axial fixation of pneumatic cylinders in industrial automation systems. Featuring high-strength anodized aluminum alloy construction, this assembly ensures vibration resistance and corrosion protection in demanding environments. The kit includes pre-assembled components with standardized mounting interfaces, enabling seamless integration with F-SI series cylinders while maintaining strict coaxial alignment. Its compact design optimizes spatial efficiency in confined machinery layouts, and the modular structure simplifies maintenance operations. The product complies with ISO 6432 mounting specifications, making it ideal for applications requiring precise linear motion control in robotics, material handling, and automated production lines.
AirTAC F-SI-LB Axial Fixation Bracket Complete Unit F-SI125LB Technical Details
- Model: F-SI125LB (Complete Unit Set)
- Type: Linear Guide Axial End Support Bracket
- Material: Aluminum Alloy ADC12 with Black Anodization
- Compatible Rail Width: 15mm
- Static Load Capacity: 2,500N (radial), 1,800N (reverse radial)
- Mounting Hole Pattern: 4×M5 threaded holes (pitch 85mm)
- Surface Hardness: HV 120±5
- Weight: 0.85kg ±3%
- Dimensions: 125mm(L) × 42mm(W) × 38mm(H)
- Operating Temperature: -20℃ to 100℃
- Surface Treatment: Sandblasting + Electrophoresis Coating
- Included Components: Bracket body, 4×M5x12 Hex Socket Screws, 2×End Seals
Precision-machined end support for SHS/LGW series linear guides, featuring integrated dust-proof design with replaceable rubber seals. The T-slot structure allows flexible sensor or limit switch mounting. Includes pre-applied lithium-complex grease for immediate installation.
- CNC machine tool X/Y-axis end stops
- Automated material handling systems
- 3D printer gantry stabilization
- Semiconductor wafer transport rails
- Medical imaging equipment sliding mechanisms
Installation protocol:
Clean rail ends with IPA before assembly. Torque screws to 3.5N·m
in crisscross pattern. Verify parallel alignment (≤0.02mm/m tolerance)
using dial indicator. Relubricate seals every 2,000 operational hours.
