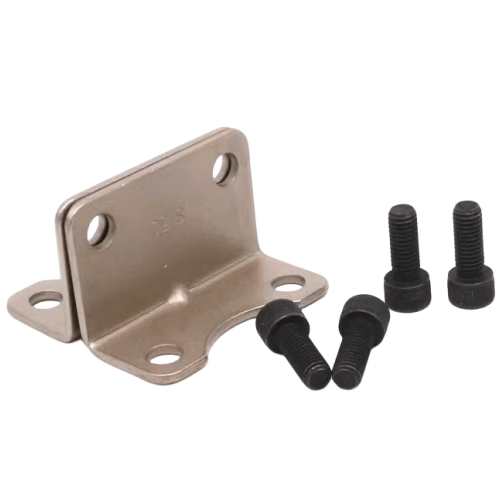

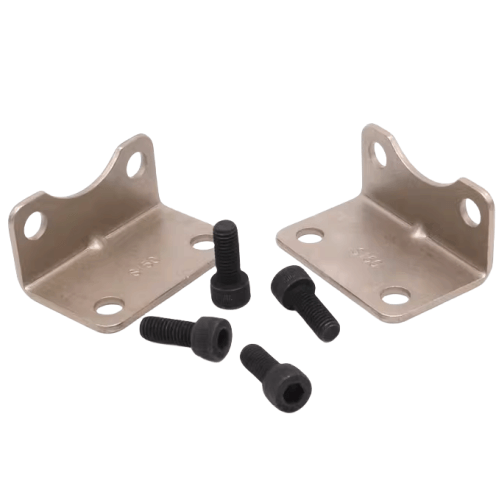

Airtac F-SI-LB Axial Fixing Bracket Assembly Kit F-SI160LB
Category: Cylinder Accessories | Brand: Airtac | Series: F-SI-LB
The Airtac F-SI-LB Axial Mounting Bracket Complete Kit is a precision-engineered cylinder accessory designed for rigid axial fixation of pneumatic cylinders in industrial automation systems. Featuring high-strength anodized aluminum alloy construction, this assembly ensures vibration resistance and corrosion protection in demanding environments. The kit includes pre-assembled components with standardized mounting interfaces, enabling seamless integration with F-SI series cylinders while maintaining strict coaxial alignment. Its compact design optimizes spatial efficiency in confined machinery layouts, and the modular structure simplifies maintenance operations. The product complies with ISO 6432 mounting specifications, making it ideal for applications requiring precise linear motion control in robotics, material handling, and automated production lines.
AirTAC F-SI-LB Series Axial Fixing Bracket Kit F-SI160LB Specifications
- Model: F-SI160LB
- Type: Precision axial support bracket with pre-assembled components
- Material: Aluminum alloy (A6063-T5) with hard anodized finish
- Suitable shaft diameter: Ø16mm (±0.01mm tolerance)
- Max axial load capacity: 850N (static), 320N (dynamic)
- Mounting hole pattern: 32mm × 32mm square (M6 threaded)
- Weight: 298g ±5g (complete kit)
- Dimensions: 72mm(L) × 42mm(W) × 28mm(H)
- Operating temperature: -30℃ to 120℃
- Surface hardness: HV 450-500
- Corrosion resistance: 96hrs salt spray test passed
- Compatible with: SMC MGPM16/MGPL16, THK SSR16, IKO LWL16 series
Precision-machined axial retention system featuring vibration-damped contact surfaces and anti-backlash adjustment. Includes pre-installed CRWU16-100 rubber wiper, SSFH16 stainless steel clamp plate, and corrosion-resistant fasteners. Designed for micron-level alignment stability in high-cycle applications.
- Linear guide end-stop reinforcement in CNC routers
- Robotic arm joint shaft fixation
- 3D printer Z-axis stabilization
- Semiconductor wafer handling robots
- Medical imaging equipment slide rails
Installation protocol:
Apply 2.5-3.0Nm torque during M6 screw tightening. Use dial indicator
to verify ≤0.02mm radial runout after installation. Re-lubricate
wiper seals every 2,000 operating hours with PFPE-based grease.
| Property | Property Value |
|---|---|
| sku | F-SI160LB |
