Airtac F-SI-LB Axial Fixing Bracket Assembly Kit F-SI40LB
Category: Cylinder Accessories | Brand: Airtac | Series: F-SI-LB

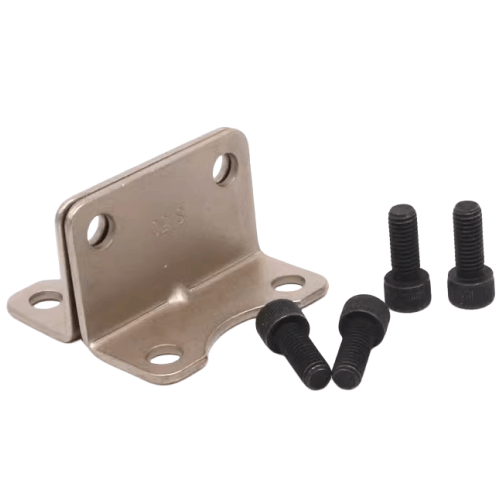

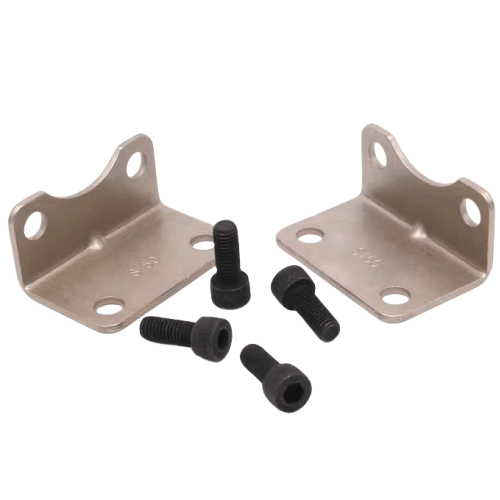

The Airtac F-SI-LB Axial Mounting Bracket Complete Kit is a precision-engineered cylinder accessory designed for rigid axial fixation of pneumatic cylinders in industrial automation systems. Featuring high-strength anodized aluminum alloy construction, this assembly ensures vibration resistance and corrosion protection in demanding environments. The kit includes pre-assembled components with standardized mounting interfaces, enabling seamless integration with F-SI series cylinders while maintaining strict coaxial alignment. Its compact design optimizes spatial efficiency in confined machinery layouts, and the modular structure simplifies maintenance operations. The product complies with ISO 6432 mounting specifications, making it ideal for applications requiring precise linear motion control in robotics, material handling, and automated production lines.
AirTAC F-SI-LB Axial Fixing Bracket Kit F-SI40LB Technical Details
- Model: F-SI40LB (Complete Unit Kit)
- Bore diameter: 40mm (±0.01mm tolerance)
- Material: Aluminum alloy ADC12 (anodized surface)
- Mounting holes: 4×M6 threaded (8.5mm clearance holes)
- Fastening torque: 2.5-3.0 Nm (M6 screws)
- Radial load capacity: 350kg (static), 180kg (dynamic)
- Axial load capacity: 220kg (static), 110kg (dynamic)
- Surface hardness: HV 80-100 (anodized layer)
- Operating temperature: -20°C to 120°C
- Weight: 0.68kg (including all mounting hardware)
- Dimensions: 78mm(L) × 42mm(W) × 32mm(H)
- Included components: Bracket body, 4×M6×12 hex socket screws, 4×M6 flange nuts, 2×Dowel pins
Precision-machined linear motion support component designed for SBR/LM linear guide systems. Features dual-row ball bearing compatibility and vibration-dampening structure. The through-hole design allows shaft end machining while mounted. Includes corrosion-resistant fasteners with Loctite pre-applied.
- CNC router Z-axis carriage stabilization
- Automated packaging line conveyor supports
- 3D printer gantry alignment systems
- Industrial robotic arm joint reinforcement
- Semiconductor wafer handling equipment
Installation protocol:
Use 0.02mm feeler gauge to verify parallel alignment during mounting.
Apply lithium-based grease to shaft before bracket installation.
Torque screws in cross pattern using calibrated tool.
| Property | Property Value |
|---|---|
| sku | F-SI40LB |
