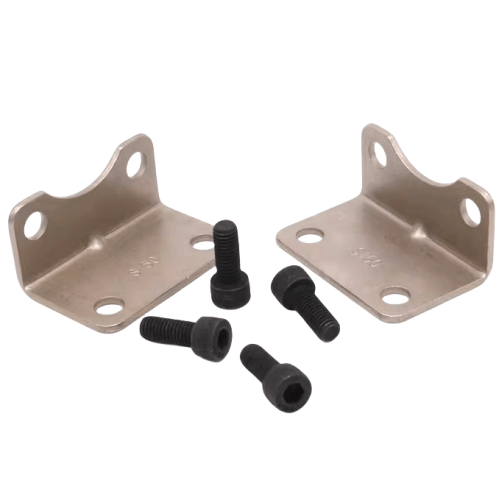

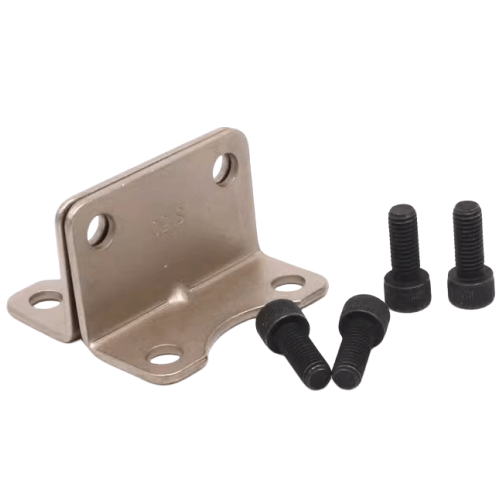

Airtac F-SI-LB Axial Fixing Bracket Assembly Kit F-SI50LB
Category: Cylinder Accessories | Brand: Airtac | Series: F-SI-LB
The Airtac F-SI-LB Axial Mounting Bracket Complete Kit is a precision-engineered cylinder accessory designed for rigid axial fixation of pneumatic cylinders in industrial automation systems. Featuring high-strength anodized aluminum alloy construction, this assembly ensures vibration resistance and corrosion protection in demanding environments. The kit includes pre-assembled components with standardized mounting interfaces, enabling seamless integration with F-SI series cylinders while maintaining strict coaxial alignment. Its compact design optimizes spatial efficiency in confined machinery layouts, and the modular structure simplifies maintenance operations. The product complies with ISO 6432 mounting specifications, making it ideal for applications requiring precise linear motion control in robotics, material handling, and automated production lines.
AirTAC F-SI-LB Series Axial Bracket Kit F-SI50LB Technical Details
- Complete model: F-SI50LB (Includes bracket, fasteners, and mounting accessories)
- Bracket type: Double-bearing support axial fixation
- Material: Aluminum alloy 6063-T5 with hard anodized finish
- Static load capacity: 2,500N radial / 1,800N axial
- Dynamic load rating: 1,700N radial / 1,200N axial
- Mounting hole pattern: 82mm × 62mm rectangular array (M6 threaded)
- Surface hardness: HV400±20
- Bearing type: Dual NSK 6005ZZ sealed deep groove ball bearings
- Shaft diameter compatibility: Ø50mm (+0/-0.012mm tolerance)
- Weight: 1,450g ±3% (complete kit)
- Dimensions: 120mm(L) × 90mm(W) × 65mm(H)
- Operating temperature: -30℃ to 120℃ (dry environment)
- Vibration resistance: 5-2000Hz, 50m/s² max
- Corrosion resistance: 96hrs salt spray test passed
Precision-engineered shaft stabilization system featuring dual angular contact bearings for simultaneous radial and axial load management. The anodized aluminum housing provides EMI shielding and thermal stability, with integrated grease ports for maintenance. Includes stainless steel M6×25 mounting screws and anti-vibration shim kit.
- Linear actuator end-support in automated assembly lines
- Conveyor roller shaft fixation for packaging machinery
- Robotic joint reinforcement in 6-axis articulated arms
- Precision spindle support for CNC tool changers
- Medical imaging equipment rotating component stabilization
Installation protocol:
Apply 3Nm torque during bearing preload adjustment. Use 0.5mm feeler gauge
to verify parallel alignment between bracket base and mounting surface.
Requires Loctite 243 threadlocker on fasteners (not included).
| Property | Property Value |
|---|---|
| sku | F-SI50LB |
