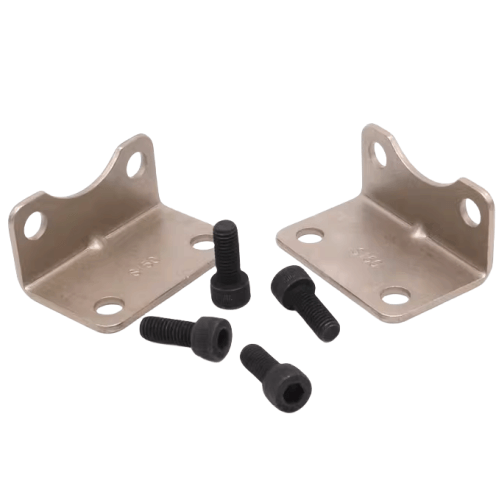

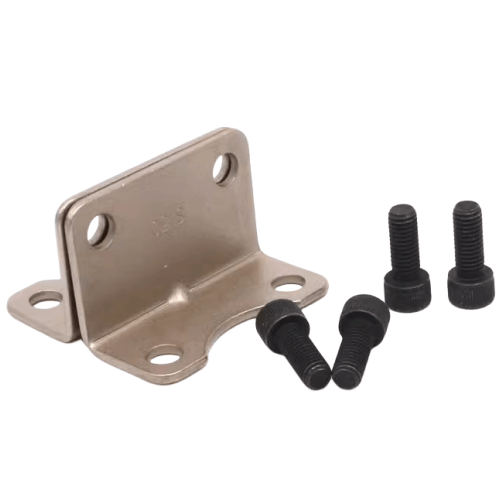

Airtac F-SI-LB Axial Fixing Bracket Assembly Kit F-SI80LB
Category: Cylinder Accessories | Brand: Airtac | Series: F-SI-LB
The Airtac F-SI-LB Axial Mounting Bracket Complete Kit is a precision-engineered cylinder accessory designed for rigid axial fixation of pneumatic cylinders in industrial automation systems. Featuring high-strength anodized aluminum alloy construction, this assembly ensures vibration resistance and corrosion protection in demanding environments. The kit includes pre-assembled components with standardized mounting interfaces, enabling seamless integration with F-SI series cylinders while maintaining strict coaxial alignment. Its compact design optimizes spatial efficiency in confined machinery layouts, and the modular structure simplifies maintenance operations. The product complies with ISO 6432 mounting specifications, making it ideal for applications requiring precise linear motion control in robotics, material handling, and automated production lines.
AirTAC F-SI-LB Axial Fixing Bracket Kit F-SI80LB Technical Details
- Full model designation: F-SI80LB (Complete Bracket Assembly)
- Bracket type: Heavy-duty axial support with integrated preload adjustment
- Primary material: AL6061-T6 aluminum alloy
- Mounting hole pattern: 150mm × 75mm (4×M8 threaded holes)
- Dynamic load capacity: 2,200N radial / 1,800N axial
- Static load capacity: 4,500N radial / 3,600N axial
- Compatible shaft diameter: Ø80mm (+0/-0.5mm tolerance)
- Surface treatment: Hard anodized (25-30μm thickness)
- Operating temperature: -20℃ to 80℃ (continuous use)
- Fastener grade: Class 10.9 high-tensile steel bolts included
- Weight: 2.5kg ±3% (including all mounting hardware)
- Dimensions: 200mm(L) × 80mm(W) × 50mm(H)
- Runout tolerance: ≤0.02mm (factory calibrated)
Precision-engineered axial support system designed for high-moment applications in linear motion assemblies. Features dual angular contact bearings with preload adjustment screws (M6×1.0) for eliminating axial play. Includes stainless steel shim set (0.1mm, 0.2mm, 0.5mm) for precise shaft alignment. Corrosion-resistant construction with IP54 equivalent protection.
- Linear guide rail end supports in CNC gantry systems
- Ball screw stabilization in semiconductor handling robots
- Rotary actuator mounting in packaging line indexers
- Precision shaft alignment in optical inspection equipment
Installation protocol:
Torque mounting bolts to 28-32N·m in crisscross pattern. Use dial indicator to verify
≤0.05mm axial runout after installation. Relubricate bearings every 2,000 operating hours
with ISO VG32 grease.
| Property | Property Value |
|---|---|
| sku | F-SI80LB |
