Airtac F-SI-TCM Trunnion Mount Complete Assembly Kit F-SI125TCM1
$58.12
Regular price
$65.62
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-SI125TCM1
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Product Category: Pneumatic Cylinder Accessories
Brand: Airtac
Series: F-SI-TCM

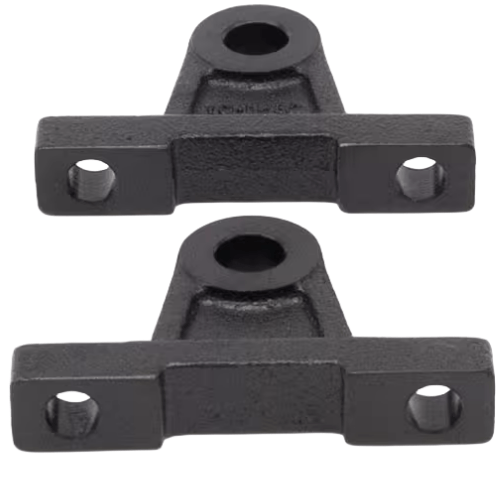

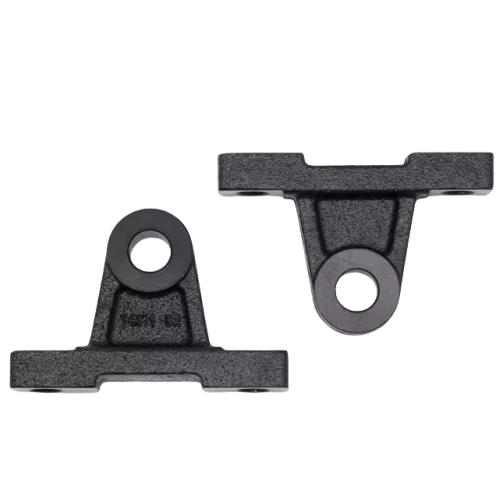

**F-SI-TCM Trunnion Bracket Assembly Kit**
A precision-engineered mounting solution for pneumatic cylinders, featuring pre-assembled trunnion brackets and fastening components. Designed for plug-and-play installation, this kit ensures secure alignment and load distribution across cylinder mounting surfaces. Includes high-grade steel construction with corrosion-resistant zinc plating and hard-anodized aluminum alloy brackets for enhanced durability. Compatible with ISO-standard cylinder profiles, offering ±1° angular adjustment tolerance for optimal system alignment. Integral shock-absorbing pads minimize vibration transmission, extending cylinder service life. Rated for dynamic loads up to 980N and operating temperatures from -20°C to 80°C.
Installation protocol:
Apply 20-25N·m torque using calibrated wrench during assembly.
Use shim plates (0.1-1.0mm) for axial alignment compensation.
Re-torque after 50 operating cycles.
AirTAC F-SI-TCM Trunnion Bracket Kit F-SI125TCM1 Technical Specifications
- Model: F-SI125TCM1
- Type: Pre-assembled trunnion bracket kit
- Material: Aluminum alloy (ADC12 die-cast)
- Surface treatment: Anodized silver finish
- Mounting compatibility: For ø125mm cylinder series
- Bore diameter range: 125±0.5mm
- Max static load capacity: 2,500N (axial direction)
- Mounting hole specifications: 2×M8×1.25 threaded holes (depth 15mm)
- Bracket thickness: 16mm (reinforced rib design)
- Operating temperature: -20℃ to 80℃
- Weight: 1.85kg ±2%
- Dimensions: 156mm(L) × 138mm(W) × 72mm(H)
- Accessories included: M8×20 hex socket screws (class 12.9), anti-vibration washers
Precision-engineered mounting solution for heavy-duty pneumatic systems, featuring laser-etched alignment marks and integrated torque indicators. The T-slot design enables 15° adjustable pivot range with locking mechanism. Includes corrosion-resistant hardware for outdoor applications.
Typical Applications:
- Robotic arm joint assemblies
- Automated material handling systems
- Plastic injection molding machine clamps
- Semiconductor wafer transfer mechanisms
- Hydraulic-to-pneumatic conversion adapters
Installation protocol:
Apply 20-25N·m torque using calibrated wrench during assembly.
Use shim plates (0.1-1.0mm) for axial alignment compensation.
Re-torque after 50 operating cycles.
Special feature:
Embedded wear indicators (red markers) show bracket fatigue status -
replace when marker alignment exceeds 2mm offset.
| Property | Property Value |
|---|---|
| sku | F-SI125TCM1 |
