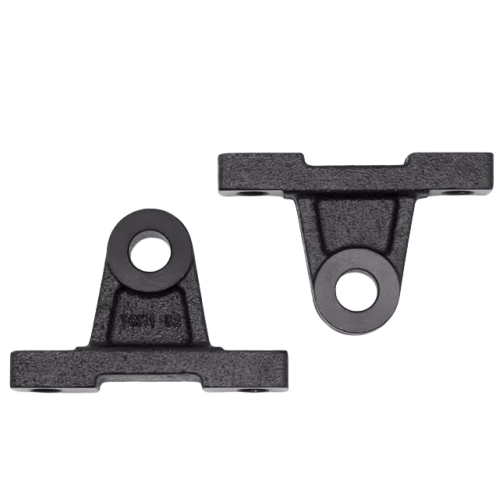

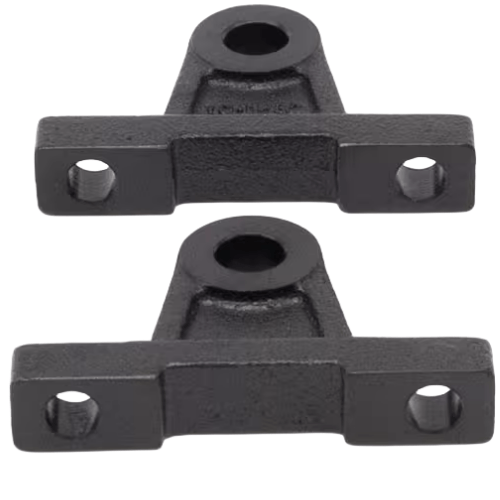

Airtac F-SI-TCM Trunnion Mount Complete Assembly Kit F-SI63TCM2
AirTAC F-SI-TCM Trunnion Mounting Bracket Kit F-SI63TCM2 Technical Details
- Model: F-SI63TCM2
- Type: Complete trunnion bracket kit for double-acting cylinders
- Cylinder bore compatibility: 63mm
- Mounting style: Dual trunnion support with through-hole design
- Material: Aluminum alloy ADC12 (base) + SCM435 steel (shaft)
- Surface treatment: Anodized (black) + Hexavalent chromium plating
- Rotation range: ±5° axial compensation angle
- Max radial load: 1,800N
- Max axial load: 900N
- Bolt specifications: M12×1.75 grade 10.9 mounting bolts (x4)
- Operating temperature: -20℃ to 150℃
- Weight: 1.25kg ±5%
- Dimensions: 150mm(L) × 75mm(W) × 45mm(H)
- Protection class: IP54 (standard configuration)
Precision-engineered mounting solution for heavy-duty pneumatic cylinders requiring rotational flexibility. Features dual hardened steel shafts with anti-corrosion treatment and precision-machined alignment grooves. Includes vibration-resistant lock nuts and alignment shims (0.1mm/0.2mm thickness options included). Compatible with ISO 15552 cylinder standards.
- Rotary clamping mechanisms in CNC fixtures
- Oscillating motion systems for conveyor transfers
- Multi-axis robotic arm end effectors
- Packaging machine rotary sealing units
- Automated welding positioner bases
Installation protocol:
Apply 25-30N·m torque during bolt tightening using cross pattern sequence.
Lubricate shaft contact surfaces with ISO VG32 hydraulic oil before operation.
Maintain 0.5mm minimum clearance between bracket and cylinder flange.
| Property | Property Value |
|---|---|
| sku | F-SI63TCM2 |
