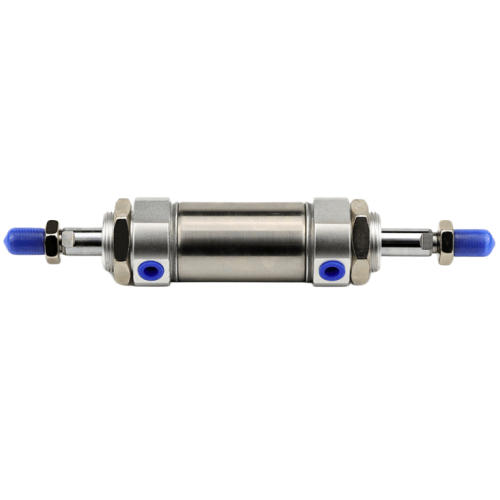

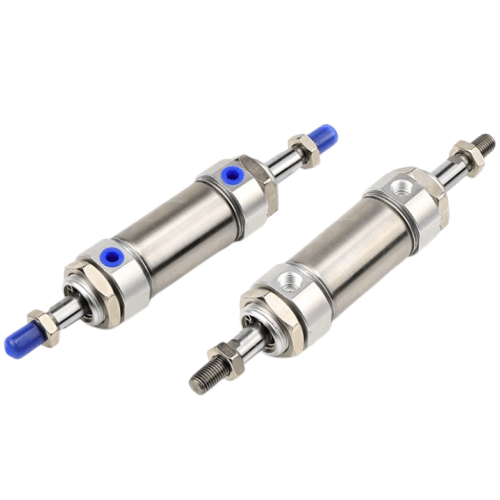

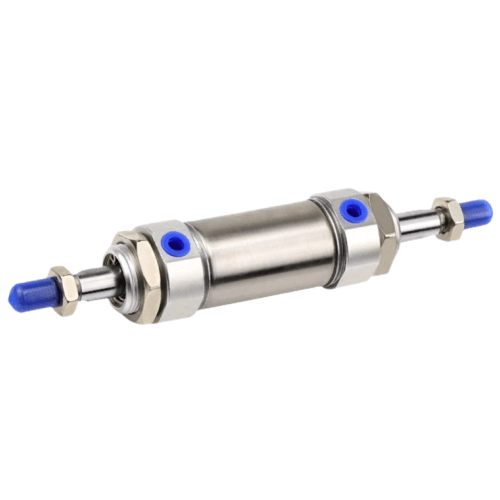

Airtac MFD Double Rod Miniature Cylinder MFD25X150S
1. Compliance with JS Standard specifications;
2. Asymmetric bidirectional sealing structure with compact dimensions and integrated oil reservoir for piston lubrication;
3. Fixed shock-absorbing pads on both end covers to mitigate directional change impacts;
4. Multiple rear cover configurations for enhanced installation flexibility;
5. Riveted enclosure design combining end covers with precision stainless steel barrel ensuring secure connection;
6. High-strength stainless steel tube construction offering superior corrosion resistance;
7. Compact footprint - shorter overall length compared to ISO6432 standard cylinders with equivalent bore/stroke;
8. Comprehensive product range with multiple accessories for customized solutions.
Category: Double Rod Cylinders | Brand: AIRTAC | Series: MFD
AirTAC MFD25X150S Double-Rod Miniature Cylinder Specifications
- Model: MFD25X150S
- Type: Double-rod compact cylinder (non-rotating)
- Bore size: Ø25mm
- Stroke: 150mm (customizable 25-300mm)
- Operating pressure: 0.05-1.0 MPa
- Temperature range: -10℃ to 80℃
- Cushioning: Adjustable rubber buffers (both ends)
- Port size: M5x0.8 (standard) / NPT1/8 optional
- Piston material: Anodized aluminum alloy
- Rod material: Chrome-plated steel (Ø8mm)
- Seal type: NBR rubber (FDA compliant option available)
- Weight: 520g ±5% (without accessories)
- Dimensions: 214mm(L) × 45mm(W) × 45mm(H) (at mid-stroke)
- Max speed: 500mm/s
- Mounting: Front flange (ISO 15552 compatible)
Ultra-slim dual-rod actuator with symmetrical force output, featuring 360° adjustable mounting slots and anti-rotation guidance. The T-slot piston design ensures precise linear motion with ≤0.5mm positional repeatability. Includes wear-resistant rod seals rated for 3,000km service life under standard conditions.
- PCB handling robots in electronics assembly
- Precision clamping fixtures for CNC machining
- Lab automation: sample sorting & reagent dispensing
- Textile machinery thread tension control
- Pharmaceutical blister packaging systems
Installation tip:
Maintain 0.5-1mm clearance between rods during parallel installations.
Lubricate with ISO VG32 hydraulic oil before initial use. Avoid side loads
exceeding 15N to prevent rod deflection.
| Property | Property Value |
|---|---|
| sku | MFD25X150S |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <25 mm> |
| Stroke | 150mm |
