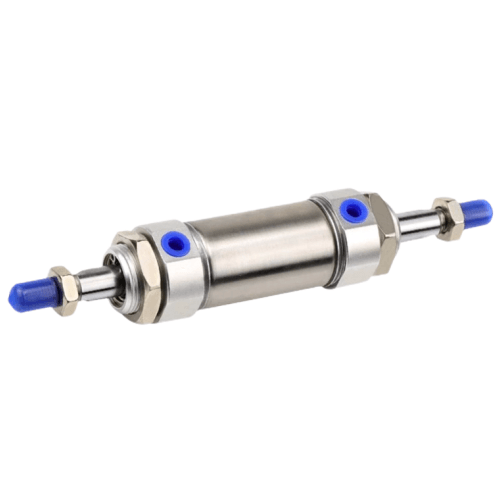

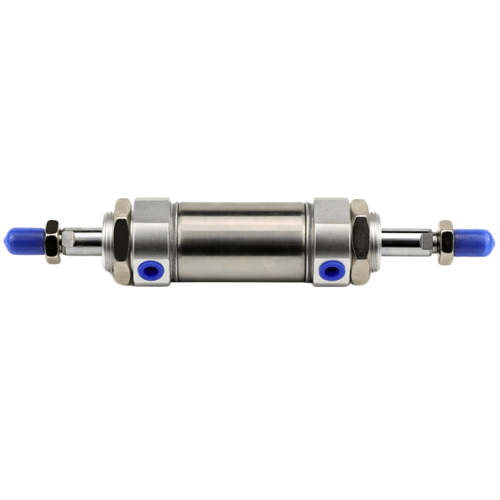

Airtac MFD Double Rod Miniature Cylinder MFD25X50S
$41.17
Regular price
$48.67
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
MFD25X50S
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
The MFD Double Rod Mini Cylinder by AIRTAC features:
1. Compliance with JS Standard specifications;
2. Asymmetric bidirectional sealing structure with compact dimensions and integrated oil reservoir for piston lubrication;
3. Fixed shock-absorbing pads on both end covers to mitigate directional change impacts;
4. Multiple rear cover configurations for enhanced installation flexibility;
5. Riveted enclosure design combining end covers with precision stainless steel barrel ensuring secure connection;
6. High-strength stainless steel tube construction offering superior corrosion resistance;
7. Compact footprint - shorter overall length compared to ISO6432 standard cylinders with equivalent bore/stroke;
8. Comprehensive product range with multiple accessories for customized solutions.
Category: Double Rod Cylinders | Brand: AIRTAC | Series: MFD
Installation guidelines:
Maintain 0.5mm minimum clearance between rod ends and mechanical stops.
For vertical mounting, use rod-end locking nuts (AN5 specification).
Lubricate every 3 months under continuous operation (2 drops ISO VG32 oil).
1. Compliance with JS Standard specifications;
2. Asymmetric bidirectional sealing structure with compact dimensions and integrated oil reservoir for piston lubrication;
3. Fixed shock-absorbing pads on both end covers to mitigate directional change impacts;
4. Multiple rear cover configurations for enhanced installation flexibility;
5. Riveted enclosure design combining end covers with precision stainless steel barrel ensuring secure connection;
6. High-strength stainless steel tube construction offering superior corrosion resistance;
7. Compact footprint - shorter overall length compared to ISO6432 standard cylinders with equivalent bore/stroke;
8. Comprehensive product range with multiple accessories for customized solutions.
Category: Double Rod Cylinders | Brand: AIRTAC | Series: MFD
AirTAC MFD25X50S Double Rod Mini Cylinder Technical Details
- Model: MFD25X50S (DIN ISO 6432 compliant)
- Bore size: Ø25mm ±0.1mm
- Stroke: 50mm (adjustable cushioning)
- Operating pressure: 0.15-0.8 MPa
- Piston speed: 50-800 mm/s (optimal range)
- Ambient temperature: -20℃ to +80℃
- Mounting types: Basic front flange (MF1), rear foot (MF3), or axial clevis (MF9)
- Cushioning: Dual adjustable rubber buffers
- Rod material: Hard chrome-plated carbon steel
- Seal type: NBR (standard) / PU (optional)
- Port size: M5x0.8 (dual exhaust ports)
- Weight: 420g ±5% (without accessories)
- Dimensions: 100mm(L) × 25mm(W) × 25mm(H) (body only)
- Stroke tolerance: +1.5mm (per ISO 4395)
- Lubrication: Pre-lubricated (Grease type: Rallye FG-20)
Ultra-compact double-rod pneumatic cylinder featuring symmetrical force output and position detection readiness. The hardened piston rod with triple chrome plating ensures 1,000km+ service life under standard conditions. Dual exhaust ports enable flexible piping configurations in space-constrained automation setups.
Industrial Applications:
- Precision clamping in CNC tool changers
- Micro-positioning in semiconductor wafer handling
- Dual-axis synchronization in packaging machinery
- Medical device actuation requiring balanced force output
- Robotic end-effector force balancing systems
Installation guidelines:
Maintain 0.5mm minimum clearance between rod ends and mechanical stops.
For vertical mounting, use rod-end locking nuts (AN5 specification).
Lubricate every 3 months under continuous operation (2 drops ISO VG32 oil).
| Property | Property Value |
|---|---|
| sku | MFD25X50S |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <25 mm> |
| Stroke | <50mm> |
