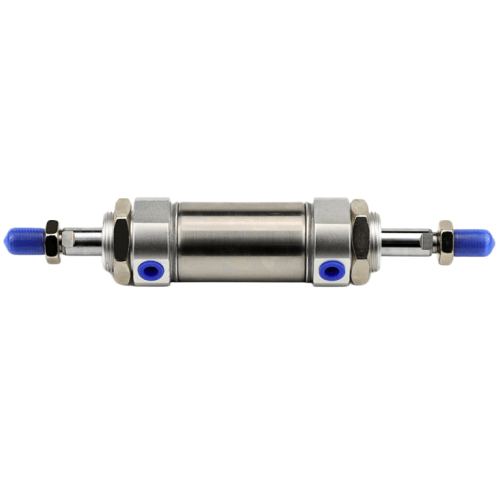

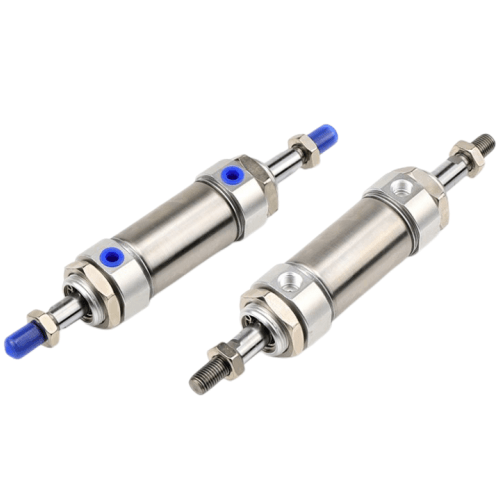

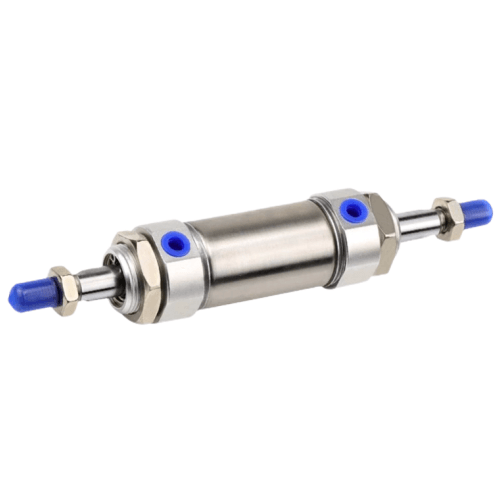

Airtac MFD Double Rod Miniature Cylinder MFD32X250S
1. Compliance with JS Standard specifications;
2. Asymmetric bidirectional sealing structure with compact dimensions and integrated oil reservoir for piston lubrication;
3. Fixed shock-absorbing pads on both end covers to mitigate directional change impacts;
4. Multiple rear cover configurations for enhanced installation flexibility;
5. Riveted enclosure design combining end covers with precision stainless steel barrel ensuring secure connection;
6. High-strength stainless steel tube construction offering superior corrosion resistance;
7. Compact footprint - shorter overall length compared to ISO6432 standard cylinders with equivalent bore/stroke;
8. Comprehensive product range with multiple accessories for customized solutions.
Category: Double Rod Cylinders | Brand: AIRTAC | Series: MFD
AirTAC MFD Series Double Rod Mini Cylinder MFD32X250S Specifications
- Model: MFD32X250S
- Type: Double-rod compact pneumatic cylinder
- Bore size: 32mm
- Stroke: 250mm
- Operating pressure: 0.15–0.8 MPa
- Operating temperature: -20℃ to 80℃
- Cushion type: Adjustable air cushion (both ends)
- Mounting style: Basic/Foot-mount (optional flange/bracket)
- Port size: PT1/8 (M5 optional)
- Piston rod material: Hard chrome-plated steel
- Seal material: NBR (standard) / Polyurethane (optional)
- Weight: 1.8kg (with standard accessories)
- Dimensions: 302mm(L) × 45mm(W) × 45mm(H)
- Max speed: 500-800mm/s (lubricated)
- ISO standard: 6432 compliant
A space-saving dual-rod actuator featuring precision-machined aluminum alloy construction with corrosion-resistant treatment. The twin-rod design ensures balanced force distribution and position stability, while the integrated cushioning system reduces impact noise. Requires 40μm filtered air and recommends ISO VG32 hydraulic oil mist lubrication.
- PCB handling robots in electronics assembly
- Precision clamping fixtures for CNC machining
- Pharmaceutical blister packaging machines
- Automated microscope stage positioning
- Cleanroom-compatible medical devices
Installation note:
Maintain coaxial alignment within 0.2mm tolerance during mounting.
For vertical installations exceeding 45° angle, use rod lock nuts
(ASNU-6 accessory recommended). Allow 15mm clearance for rod extension.
| Property | Property Value |
|---|---|
| sku | MFD32X250S |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <32 mm> |
| Stroke | <250MM> → <250mm> |
