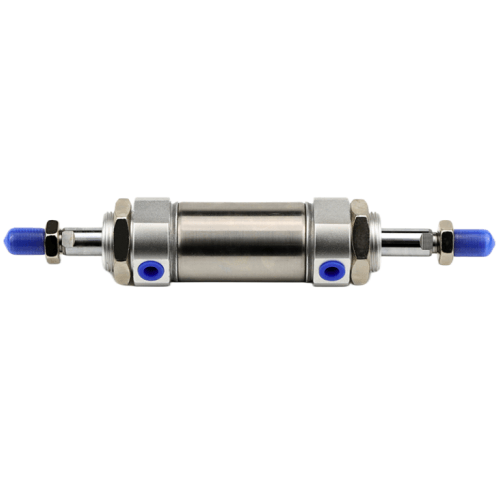

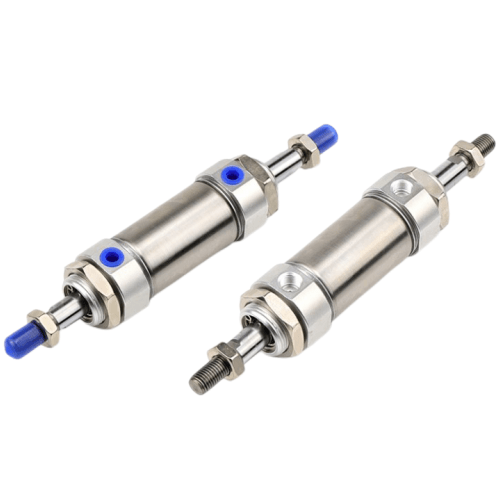

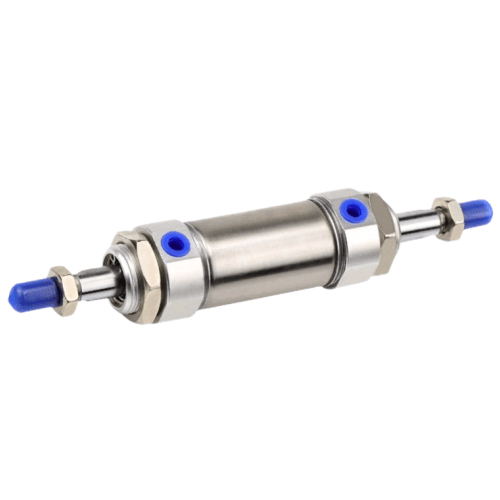

Airtac MFD Double Rod Miniature Cylinder MFD32X25S
$45.35
Regular price
$52.85
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
MFD32X25S
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
The MFD Double Rod Mini Cylinder by AIRTAC features:
1. Compliance with JS Standard specifications;
2. Asymmetric bidirectional sealing structure with compact dimensions and integrated oil reservoir for piston lubrication;
3. Fixed shock-absorbing pads on both end covers to mitigate directional change impacts;
4. Multiple rear cover configurations for enhanced installation flexibility;
5. Riveted enclosure design combining end covers with precision stainless steel barrel ensuring secure connection;
6. High-strength stainless steel tube construction offering superior corrosion resistance;
7. Compact footprint - shorter overall length compared to ISO6432 standard cylinders with equivalent bore/stroke;
8. Comprehensive product range with multiple accessories for customized solutions.
Category: Double Rod Cylinders | Brand: AIRTAC | Series: MFD
Installation tips:
Lubricate with ISO VG32 hydraulic oil before initial use.
Maintain minimum 2mm lateral clearance for thermal expansion.
For vertical mounting, use counterbalance valves to prevent drift.
1. Compliance with JS Standard specifications;
2. Asymmetric bidirectional sealing structure with compact dimensions and integrated oil reservoir for piston lubrication;
3. Fixed shock-absorbing pads on both end covers to mitigate directional change impacts;
4. Multiple rear cover configurations for enhanced installation flexibility;
5. Riveted enclosure design combining end covers with precision stainless steel barrel ensuring secure connection;
6. High-strength stainless steel tube construction offering superior corrosion resistance;
7. Compact footprint - shorter overall length compared to ISO6432 standard cylinders with equivalent bore/stroke;
8. Comprehensive product range with multiple accessories for customized solutions.
Category: Double Rod Cylinders | Brand: AIRTAC | Series: MFD
AirTAC MFD32X25S Double Rod Mini Cylinder Specifications
- Model: MFD32X25S
- Type: Double-acting compact cylinder
- Bore size: 32mm
- Stroke: 25mm (adjustable cushion)
- Operating pressure: 0.05–0.9 MPa
- Port size: M5x0.8 (dual exhaust ports)
- Piston speed: 50–800 mm/s
- Rod diameter: 8mm (hard chrome-plated)
- Seal material: NBR (nitrile rubber)
- Temperature range: -10℃ to 80℃
- Weight: 0.38 kg (excluding accessories)
- Dimensions:
- Body length: 86mm (without rods)
- Full extended length: 136mm (25mm stroke)
- Width: 32mm (square body profile)
- Height: 32mm
- Mounting: 2x M4 threaded holes (base mounting)
- Protection class: IP54 (standard seals)
Ultra-compact dual-rod pneumatic cylinder featuring symmetrical force output and space-saving design. The hardened piston rods with integrated shock absorbers enable precise bidirectional movement control. Optional magnetic piston version (MFD32X25S-M) available for position sensing.
Ideal Applications:
- Precision alignment fixtures in semiconductor manufacturing
- Simultaneous clamping mechanisms in CNC tool changers
- Compact material pushers in pharmaceutical packaging lines
- Valve actuation in analytical instruments
- Robotic end-effector positioning systems
Installation tips:
Lubricate with ISO VG32 hydraulic oil before initial use.
Maintain minimum 2mm lateral clearance for thermal expansion.
For vertical mounting, use counterbalance valves to prevent drift.
Accessory Compatibility:
- Couplings: MQML-8 rod end joints
- Sensors: APSE-4M magnetic proximity switches
- Speed controllers: ASC-02 adjustable flow valves
| Property | Property Value |
|---|---|
| sku | MFD32X25S |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <32 mm> |
| Stroke | <25 mm> |
