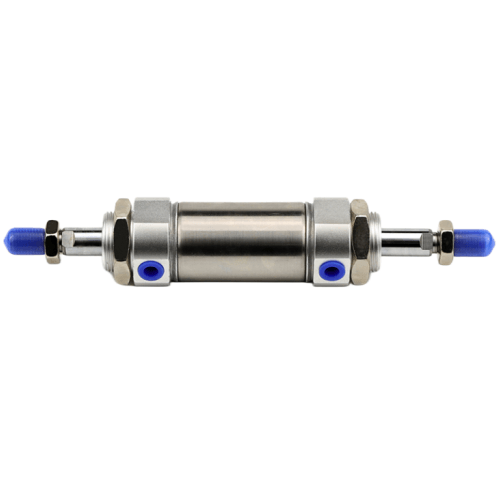

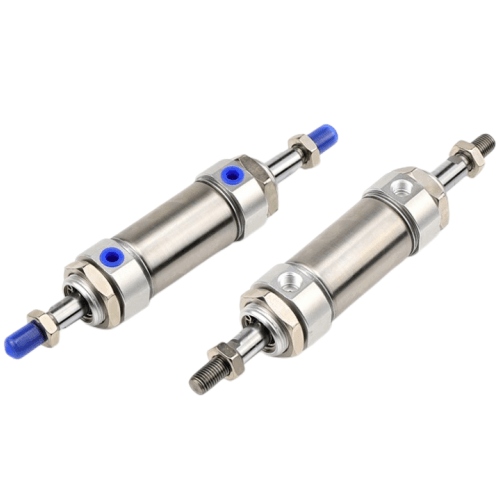

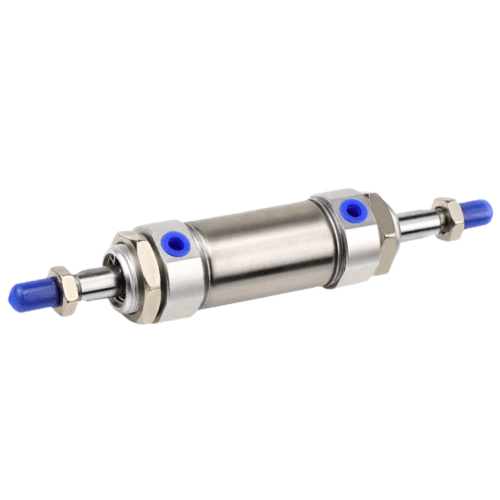

Airtac MFD Double Rod Miniature Cylinder MFD32X60
$49.74
Regular price
$57.24
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
MFD32X60
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
The MFD Double Rod Mini Cylinder by AIRTAC features:
1. Compliance with JS Standard specifications;
2. Asymmetric bidirectional sealing structure with compact dimensions and integrated oil reservoir for piston lubrication;
3. Fixed shock-absorbing pads on both end covers to mitigate directional change impacts;
4. Multiple rear cover configurations for enhanced installation flexibility;
5. Riveted enclosure design combining end covers with precision stainless steel barrel ensuring secure connection;
6. High-strength stainless steel tube construction offering superior corrosion resistance;
7. Compact footprint - shorter overall length compared to ISO6432 standard cylinders with equivalent bore/stroke;
8. Comprehensive product range with multiple accessories for customized solutions.
Category: Double Rod Cylinders | Brand: AIRTAC | Series: MFD
Installation tips:
Ensure perfect axial alignment during mounting. Lubricate with ISO VG32 hydraulic oil
before initial use. Avoid side loads exceeding 15N. For vertical installations,
maintain minimum 0.2MPa pressure to prevent piston drift.
1. Compliance with JS Standard specifications;
2. Asymmetric bidirectional sealing structure with compact dimensions and integrated oil reservoir for piston lubrication;
3. Fixed shock-absorbing pads on both end covers to mitigate directional change impacts;
4. Multiple rear cover configurations for enhanced installation flexibility;
5. Riveted enclosure design combining end covers with precision stainless steel barrel ensuring secure connection;
6. High-strength stainless steel tube construction offering superior corrosion resistance;
7. Compact footprint - shorter overall length compared to ISO6432 standard cylinders with equivalent bore/stroke;
8. Comprehensive product range with multiple accessories for customized solutions.
Category: Double Rod Cylinders | Brand: AIRTAC | Series: MFD
AirTAC MFD32X60 Double-Acting Mini Cylinder Technical Details
- Model: MFD32X60
- Bore size: 32mm
- Stroke: 60mm
- Operation: Double-acting
- Operating pressure: 0.1–0.8 MPa
- Port size: M5x0.8 (standard) with optional NPT1/8 adapters
- Cushioning: Adjustable pneumatic cushion (both ends)
- Mounting style: Foot-mounted (standard), front flange/axial options available
- Ambient temperature: -20℃ to 80℃
- Piston material: Hard anodized aluminum alloy
- Rod material: Chrome-plated steel
- Seals: NBR (standard), optional FKM for high-temp
- Weight: 1.2kg (with standard fittings)
- Dimensions: 150mm(L) × 80mm(W) × 80mm(H)
- Max theoretical force: 196N @ 0.5MPa (extend), 179N @ 0.5MPa (retract)
- Speed range: 50–700mm/s
- Protection class: IP54 (standard), IP67 with optional wipers
Ultra-compact dual-action cylinder engineered for space-constrained automation systems. Features precision-ground rod guides and low-friction seals for smooth operation. Integrated cushion adjustment screws allow fine-tuning of end-stroke deceleration. Compatible with ISO 21287 mounting standards.
Ideal Applications:
- PCB handling robots in electronics assembly
- Dosing valve actuation in medical devices
- Carton flap control in packaging machinery
- Precision clamping in CNC tool changers
- Vending machine product elevators
Installation tips:
Ensure perfect axial alignment during mounting. Lubricate with ISO VG32 hydraulic oil
before initial use. Avoid side loads exceeding 15N. For vertical installations,
maintain minimum 0.2MPa pressure to prevent piston drift.
| Property | Property Value |
|---|---|
| sku | MFD32X60 |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/8 |
| Magnet | Non-magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <32 mm> |
| Stroke | 60mm |
