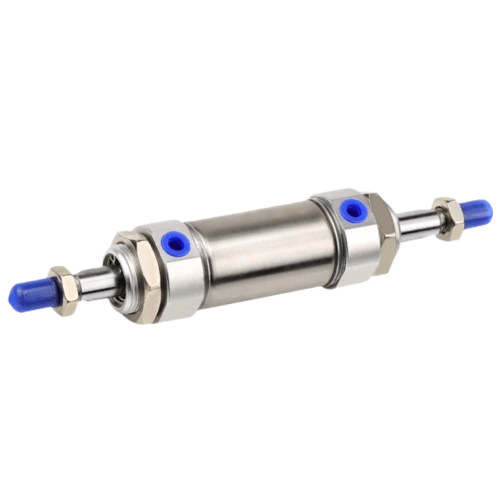

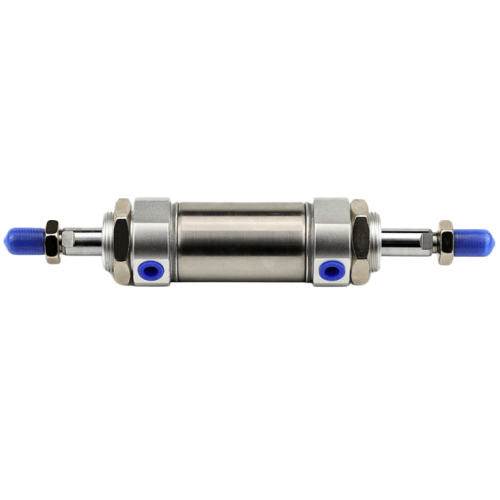

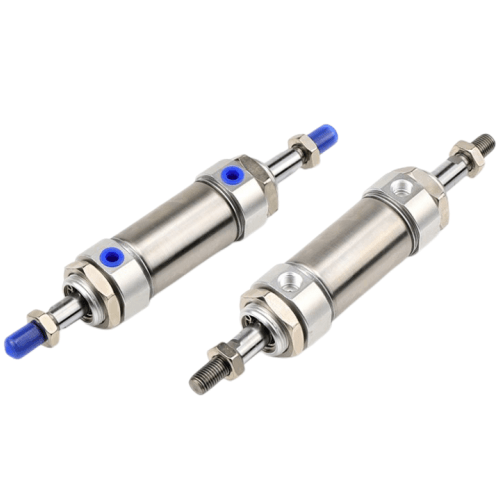

Airtac MFD Double Rod Miniature Cylinder MFD40X40S
$61.38
Regular price
$68.88
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
MFD40X40S
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
The MFD Double Rod Mini Cylinder by AIRTAC features:
1. Compliance with JS Standard specifications;
2. Asymmetric bidirectional sealing structure with compact dimensions and integrated oil reservoir for piston lubrication;
3. Fixed shock-absorbing pads on both end covers to mitigate directional change impacts;
4. Multiple rear cover configurations for enhanced installation flexibility;
5. Riveted enclosure design combining end covers with precision stainless steel barrel ensuring secure connection;
6. High-strength stainless steel tube construction offering superior corrosion resistance;
7. Compact footprint - shorter overall length compared to ISO6432 standard cylinders with equivalent bore/stroke;
8. Comprehensive product range with multiple accessories for customized solutions.
Category: Double Rod Cylinders | Brand: AIRTAC | Series: MFD
Installation note:
Lubricate with ISO VG32 hydraulic oil before initial use.
Maintain 0.5mm minimum clearance between rods during parallel installations.
Use locknuts (included) for axial load stabilization.
1. Compliance with JS Standard specifications;
2. Asymmetric bidirectional sealing structure with compact dimensions and integrated oil reservoir for piston lubrication;
3. Fixed shock-absorbing pads on both end covers to mitigate directional change impacts;
4. Multiple rear cover configurations for enhanced installation flexibility;
5. Riveted enclosure design combining end covers with precision stainless steel barrel ensuring secure connection;
6. High-strength stainless steel tube construction offering superior corrosion resistance;
7. Compact footprint - shorter overall length compared to ISO6432 standard cylinders with equivalent bore/stroke;
8. Comprehensive product range with multiple accessories for customized solutions.
Category: Double Rod Cylinders | Brand: AIRTAC | Series: MFD
AirTAC MFD40X40S Double Rod Mini Cylinder Specifications
- Model: MFD40X40S
- Type: Double-acting, dual rod mini cylinder
- Bore size: 40mm
- Stroke: 40mm (customizable 10-100mm)
- Operating pressure: 0.05–1.0 MPa
- Port size: M5x0.8 (standard) / NPT1/8 optional
- Cushioning: Adjustable pneumatic cushion
- Piston material: Aluminum alloy with hard anodizing
- Rod material: Stainless steel (SUS304)
- Seal material: NBR (Nitrile rubber)
- Temperature range: -20℃ to 80℃
- Max speed: 500mm/s
- Weight: 680g ±2% (without accessories)
- Dimensions: 132mm(L) × 56mm(W) × 56mm(H) (at mid-stroke)
- Mounting options: Basic/axial/face mounting
- Protection rating: IP54 (standard) / IP67 (with optional wiper)
Precision-engineered dual rod cylinder featuring symmetrical force output and enhanced lateral load capacity. The T-slot design allows easy sensor mounting, while the chrome-plated piston rod resists corrosion. Requires ISO 8573-1:2010 Class 3-4-3 compressed air.
Typical Applications:
- Precision alignment in semiconductor handling robots
- Simultaneous clamping in CNC fixture systems
- Bidirectional positioning for medical device actuators
- Compact packaging machine ejectors
- Laboratory automation gripper mechanisms
Installation note:
Lubricate with ISO VG32 hydraulic oil before initial use.
Maintain 0.5mm minimum clearance between rods during parallel installations.
Use locknuts (included) for axial load stabilization.
| Property | Property Value |
|---|---|
| sku | MFD40X40S |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/4 |
| Magnet | S-Magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <40mm> |
| Stroke | <40mm> |
