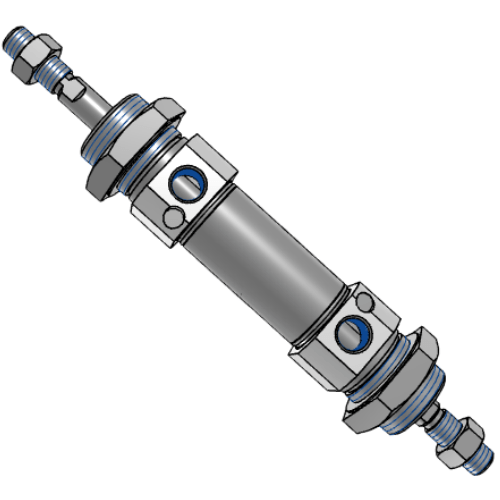

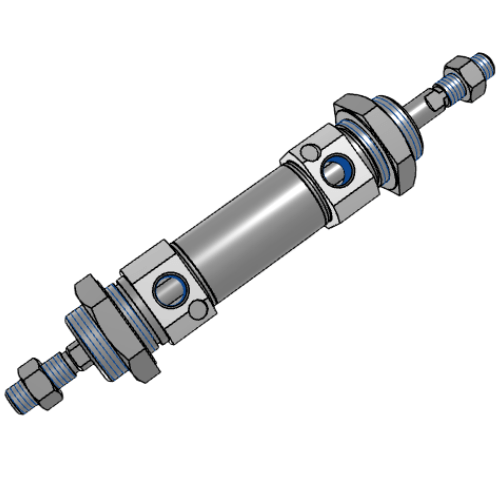

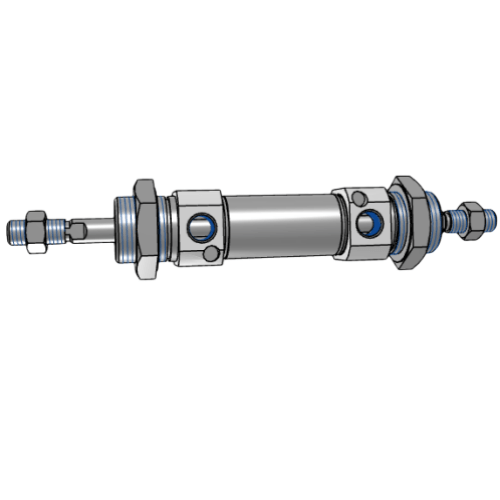

Airtac MICD Air Cushion Double Rod Mini Cylinder MICD16X300S
2. Integrated fixed cushion rings on front/rear end caps reduce impact shock during directional changes;
3. Multiple rear cap configurations simplify installation flexibility;
4. Riveted hybrid enclosure structure securely joins end caps to stainless steel cylinder barrel;
5. Stainless steel piston rod and barrel construction ensures reliable operation in mildly corrosive environments;
6. Comprehensive cylinder specifications and mounting accessories available for customized solutions.
Category: Double Rod Cylinders , Brand: AirTAC , Series: MICD
AirTAC MICD16X300S Air Cushioned Double-Rod Mini Cylinder Specifications
- Model: MICD16X300S
- Bore Size: 16mm
- Stroke: 300mm
- Operating Pressure: 0.15-0.8 MPa
- Cushioning Type: Adjustable Air Cushion (Both Ends)
- Rod Diameter: 6mm (Double Rod Design)
- Port Size: M5x0.8 (Standard) / NPT1/8 Optional
- Mounting Style: Basic Type (Accessory Mounts Available)
- Seal Material: NBR (Nitrile Rubber)
- Temperature Range: -20℃ to 80℃
- Piston Speed: 50-700 mm/s
- Weight: 0.82 kg
- Dimensions (L×W×H): 407mm × 40mm × 40mm
- Rod Thread: M6×1.0 (Both Ends)
- Protection Rating: IP54
Ultra-compact double-rod cylinder with precision air cushion adjustment, designed for applications requiring symmetric force transmission and precise end-position damping. Features anti-rotation mechanism for stable rod movement and integrated mounting slots for flexible installation. Anodized aluminum construction ensures corrosion resistance.
- Precision alignment mechanisms in semiconductor equipment
- Bi-directional clamping in automated assembly lines
- Material handling systems requiring balanced force output
- Packaging machinery with space constraints
- Medical device actuation systems
Installation note:
Optimal performance achieved when mounted with 0.5-1mm alignment tolerance.
Lubricate with ISO VG32 hydraulic oil before initial use. Avoid side load exceeding 5N.
Cushion adjustment requires 1/8 turn increments for fine tuning.
| Property | Property Value |
|---|---|
| sku | MICD16X300S |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | M5×0.8 |
| Magnet | S-Magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | 16mm |
| Stroke | 300mm |
