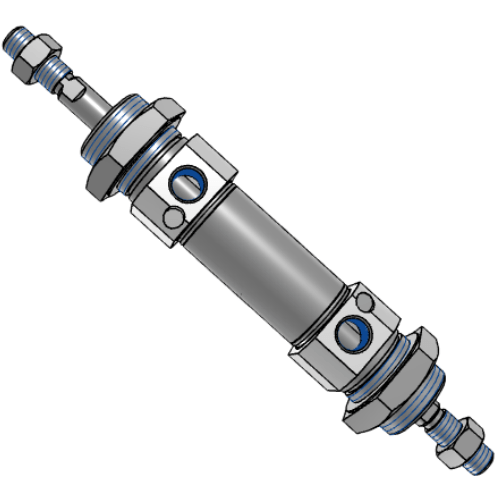

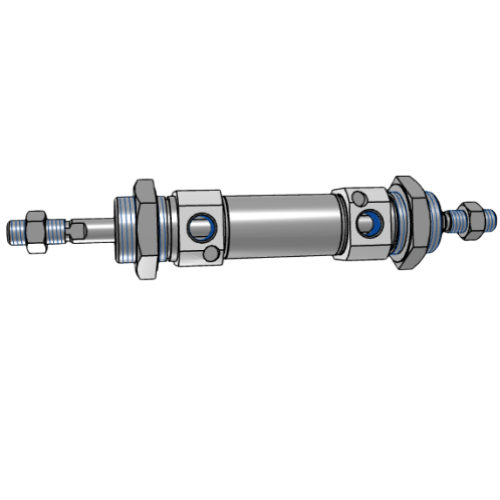

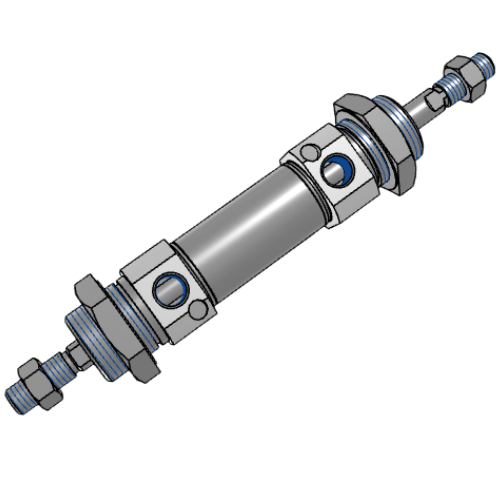

Airtac MICD Air Cushion Double Rod Mini Cylinder MICD25X125S
$58.38
Regular price
$65.88
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
MICD25X125S
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Compliant with ISO 6432 standard (for sizes 8-25);
2. Integrated fixed cushion rings on front/rear end caps reduce impact shock during directional changes;
3. Multiple rear cap configurations simplify installation flexibility;
4. Riveted hybrid enclosure structure securely joins end caps to stainless steel cylinder barrel;
5. Stainless steel piston rod and barrel construction ensures reliable operation in mildly corrosive environments;
6. Comprehensive cylinder specifications and mounting accessories available for customized solutions.
Category: Double Rod Cylinders , Brand: AirTAC , Series: MICD
Installation tip:
For vertical mounting, install cushion locks clockwise for upper position adjustment.
Maintain 0.5-1mm rod end play during alignment. Use anti-vibration washers in high-cycle applications (>2Hz).
2. Integrated fixed cushion rings on front/rear end caps reduce impact shock during directional changes;
3. Multiple rear cap configurations simplify installation flexibility;
4. Riveted hybrid enclosure structure securely joins end caps to stainless steel cylinder barrel;
5. Stainless steel piston rod and barrel construction ensures reliable operation in mildly corrosive environments;
6. Comprehensive cylinder specifications and mounting accessories available for customized solutions.
Category: Double Rod Cylinders , Brand: AirTAC , Series: MICD
AirTAC MICD Series Compact Air Cushion Double-Rod Cylinder MICD25X125S
- Model: MICD25X125S
- Bore size: Ø25mm
- Stroke: 125mm (customizable 25-300mm)
- Operating pressure: 0.05-0.9 MPa
- Cushion type: Adjustable air cushion (both ends)
- Mounting style: Front flange (MF1), side lug (MP2), foot mount (MFA) options
- Port size: M5x0.8 (standard), G1/8 optional
- Piston speed: 50-700 mm/s (cushioned)
- Ambient temperature: -20℃ to 80℃
- Rod material: Hard chrome-plated carbon steel
- Tube material: Anodized aluminum alloy
- Seal type: NBR rubber (standard), optional Fluorocarbon
- Weight: 0.98 kg (with cushion adjustment screws)
- Dimensions:
- Total length (L): 209mm (stroke 125 + 84mm base)
- Body width (W): 34mm
- Height (H): 44mm (excluding mounting hardware)
- ISO standard: 6431 (mounting dimensions compatible)
- Protection class: IP54 (standard), IP67 optional
- Lubrication: Pre-lubricated (use ISO VG32 turbine oil if required)
Ultra-compact dual-rod cylinder featuring precision air cushioning for smooth end-of-stroke deceleration. The twin-rod design provides balanced force output and improved lateral load capacity. Optimized flow channels reduce air consumption by 18% compared to conventional models. Requires 5μm filtered air.
Industrial Applications:
- PCB handling robots - dual-arm synchronization
- Pharmaceutical tablet pressing equipment
- Semiconductor wafer clamping mechanisms
- Automated cosmetic filling machines
- Textile machinery thread tension control
Installation tip:
For vertical mounting, install cushion locks clockwise for upper position adjustment.
Maintain 0.5-1mm rod end play during alignment. Use anti-vibration washers in high-cycle applications (>2Hz).
Lubrication:
Initial 1,000km stroke maintenance-free. Relubricate every 3 million cycles using AirTAC PPS-L01 grease
(NLGI #2 equivalent). Avoid silicone-based lubricants.
| Property | Property Value |
|---|---|
| sku | MICD25X125S |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <25 mm> |
| Stroke | 125mm |
