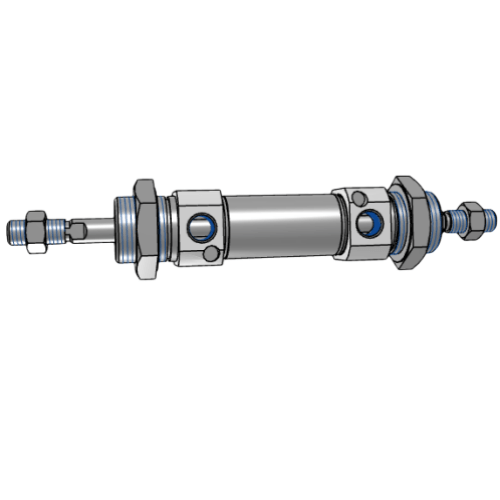

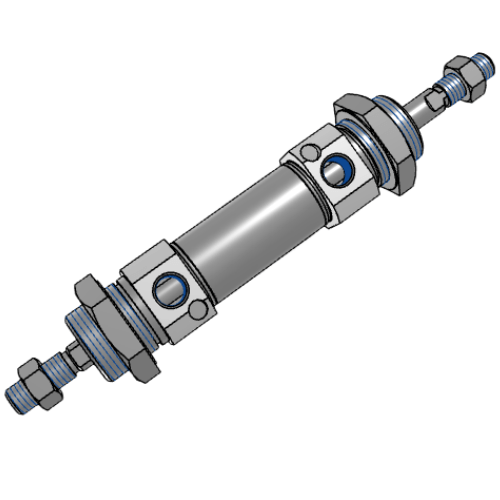

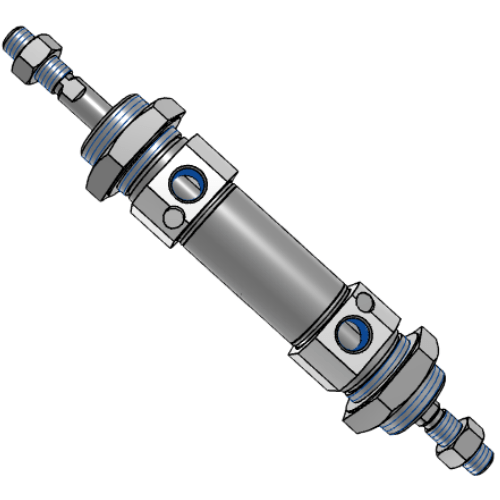

Airtac MICD Air Cushion Double Rod Mini Cylinder MICD32X300S
2. Integrated fixed cushion rings on front/rear end caps reduce impact shock during directional changes;
3. Multiple rear cap configurations simplify installation flexibility;
4. Riveted hybrid enclosure structure securely joins end caps to stainless steel cylinder barrel;
5. Stainless steel piston rod and barrel construction ensures reliable operation in mildly corrosive environments;
6. Comprehensive cylinder specifications and mounting accessories available for customized solutions.
Category: Double Rod Cylinders , Brand: AirTAC , Series: MICD
AirTAC MICD Series Dual Rod Mini Cylinder with Air Cushion MICD32X300S
- Model: MICD32X300S
- Bore size: 32mm
- Stroke: 300mm
- Action type: Double-acting with air cushion
- Operating pressure: 0.15–0.8 MPa (21.7–116 psi)
- Cushion adjustment: Adjustable pneumatic buffer (both ends)
- Port size: M5 (1/8" NPT optional)
- Rod diameter: 12mm (dual rod)
- Rod material: Stainless steel (SUS304)
- Cylinder tube: Hard anodized aluminum alloy
- Seal material: NBR (Nitrile rubber)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Piston speed: 50–800 mm/s
- Mounting type: Standard (no built-in mounts, requires accessory brackets)
- Weight: ~1.25kg (2.76 lbs)
- Dimensions (L×W×H):
- Body length: 335mm
- Total extended length: 635mm (stroke×2 + body length)
- Width (including ports): 52mm
- Height (rod center to base): 26mm
Precision-engineered dual rod cylinder featuring synchronized movement and position detection compatibility. The integrated air cushion mechanism minimizes end-impact noise (≤70dB) while allowing precise stroke-end deceleration adjustment. Dual rod design ensures enhanced rigidity and stability for applications requiring symmetrical force distribution. Compatible with magnetic sensors (M9/M12 connectors) for position feedback.
- Precision alignment in semiconductor handling robots
- Simultaneous clamping mechanisms in CNC fixtures
- Vertical lifting stages in automated packaging lines
- Parallel gripper actuation in pick-and-place systems
- Position synchronization in printing press feed systems
Installation note:
Maintain strict alignment tolerance (±0.5mm) during mounting. Lubricate through air port (ISO VG32 equivalent) every 500km of cumulative stroke. For vertical installations, use counterbalance valves when handling loads >5kg.
| Property | Property Value |
|---|---|
| sku | MICD32X300S |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <32 mm> |
| Stroke | 300mm |
