Airtac P-4M Adapter Plate P-4M200-R1

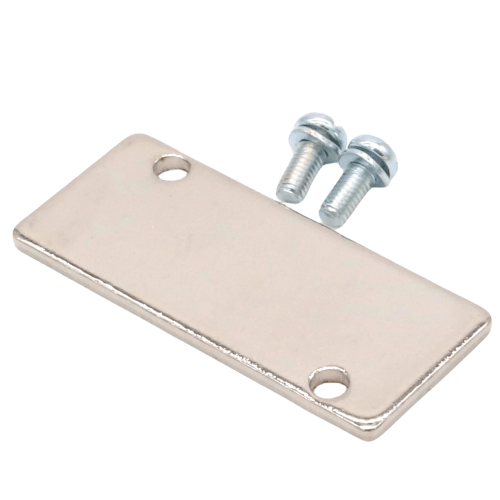

AirTAC P-4M Transition Plate P-4M200-R1 Technical Specifications
- Model: P-4M200-R1
- Type: Modular aluminum transition plate
- Material: Anodized aluminum alloy (AL6063-T5)
- Length: 200mm ±0.2mm
- Width: 40mm ±0.1mm
- Height: 20mm ±0.1mm
- Weight: ~480g (including mounting hardware)
- Compatible series: P-4M modular pneumatic components
- Mounting hole pattern: 5×M5 threaded holes (depth 8mm)
- Surface hardness: HV 400-450
- Operating temperature: -20℃ to 80℃
- Max load capacity: 1200N (static), 800N (dynamic)
- Surface finish: Sandblasted + black anodized
Precision-machined transition plate designed for extending/connecting P-4M series pneumatic manifolds. Features wear-resistant anodized coating and dual-row mounting holes for enhanced structural stability. Includes pre-installed stainless steel dowel pins (Ø4×10mm) for alignment accuracy ≤0.05mm.
- Multi-station pneumatic system integration
- Custom manifold configurations in robotics
- Production line fixture extensions
- Retrofitting legacy systems with P-4M components
- Vibration-dampening interface for CNC machinery
Installation protocol:
Clean mating surfaces with isopropyl alcohol before assembly.
Use torque-controlled wrench (recommended 2.5-3.0N·m for M5 screws).
Apply thread-locking compound for high-vibration environments.
- P-4M300-R1 (300mm version)
- P-4M-MK5 mounting kit
- APT-4M thermal isolation gaskets
| Property | Property Value |
|---|---|
| sku | P-4M200-R1 |
