Airtac P-ACQD Repair Kit P-ACQD100-R1
$6.47
Regular price
$13.97
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
P-ACQD100-R1
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

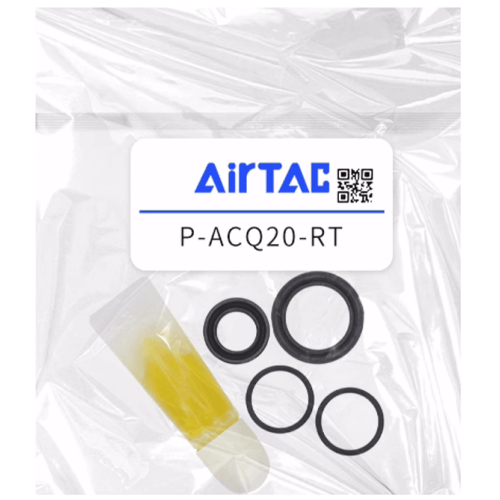

Product Name: AirTAC P-ACQD Cylinder Seal Repair Kit
Category: Pneumatic Cylinder Seal Kits
Brand: AirTAC
Series: P-ACQD
This professional-grade repair kit is engineered for the maintenance and overhaul of AirTAC pneumatic cylinders within the P-ACQD series. It contains precision-manufactured sealing components, including wear-resistant piston seals, rod seals, and wipers, all crafted from industry-standard materials like NBR or polyurethane to ensure optimal leak prevention and extended service life. Compatible with ISO/VDMA cylinder profiles, the kit guarantees dimensional accuracy and seamless integration with original AirTAC cylinder assemblies. Ideal for industrial automation systems, it restores cylinder performance by maintaining air-tight integrity, reducing downtime, and aligning with ISO 6431/15552 specifications. Includes installation guidelines for OEM-grade repairs.
Installation protocol:
Always degrease components with isopropyl alcohol before assembly.
Use torque-controlled tools (0.8-1.2Nm for end caps).
Perform 50 test cycles at 0.3MPa before returning to service.
AirTAC P-ACQD100-R1 Repair Kit Technical Details
- Model: P-ACQD100-R1
- Compatibility: Designed for ACQ series cylinders (ACQ32~ACQ100)

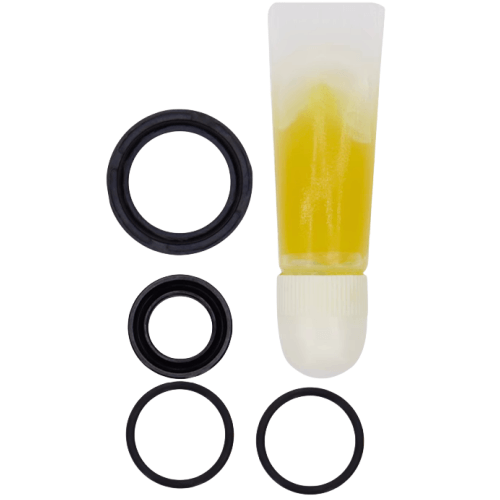

- Components Included:
- Piston seals (NBR/PU material)
- Rod seals (double-lip design)
- Wear bands & guide rings
- O-rings (multiple sizes)
- Cushion seals & retaining rings
- Lubrication grease sachet (3g)
- Material Grade: ISO 9001-certified polyurethane and nitrile compounds
- Temperature Range: -20℃ to 80℃ (continuous operation)
- Storage Conditions: 15-25℃ in original sealed packaging (5-year shelf life)
- Weight: 220g ±5% (including packaging)
- Dimensions: 150mm(L) × 80mm(W) × 30mm(H)
- Kit Version: Revision 1 (2023 updated cushion design)
Comprehensive maintenance solution for restoring pneumatic cylinder performance, containing all wear-prone components for full overhaul. Features abrasion-resistant seals with 30% improved cycle life compared to standard kits. Anti-extrusion design handles pressures up to 1.2MPa.
Application Scenarios:
- Preventive maintenance in high-cycle automation lines (800,000+ cycles)
- Emergency repair of leaking cylinders in injection molding machines
- Rebuilding actuators in food processing equipment (grease compatible with NSF H1 standards)
- Retrofitting legacy cylinders to meet ISO 6432:2020 specifications
Installation protocol:
Always degrease components with isopropyl alcohol before assembly.
Use torque-controlled tools (0.8-1.2Nm for end caps).
Perform 50 test cycles at 0.3MPa before returning to service.
| Property | Property Value |
|---|---|
| sku | P-ACQD100-R1 |
