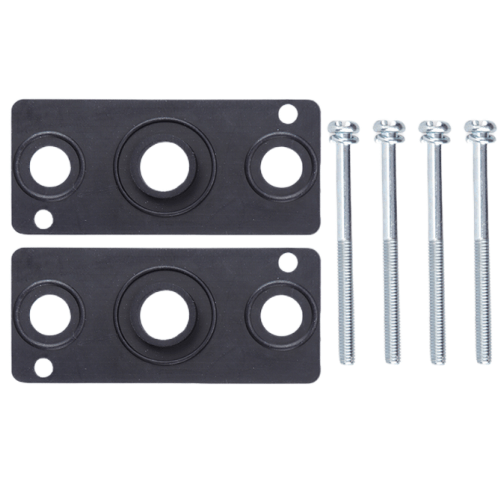

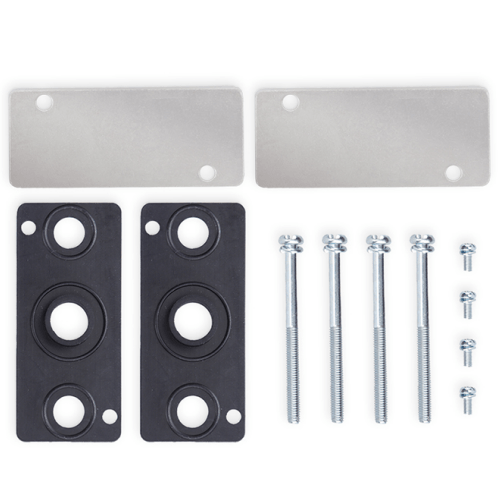

Airtac P-ESV Blind Cover P-ESV300M-R2
1. Sleek exterior design with compact structural configuration;
2. Mounting interface dimensions comply with ISO 55991 international standard;
3. Proprietary sealing components ensure high flow capacity and extended service life;
4. Series 200/300/400 enable reconfiguration between internal pilot, external pilot, and pneumatic control valve modes through directional adjustment of sealing assemblies;
5. Requires base mounting (available in single-unit or modular multi-unit configurations), supporting flexible multi-valve combinations;
6. Bases feature diversified pneumatic porting and mounting options for enhanced adaptability;
7. Integrated exhaust throttling functionality in Series 200/300/400 bases eliminates need for external throttle valves.
Category: Cover Plates | Brand: AIRTAC | Series: P-ESV
AirTAC P-ESV300M-R2 Blind Cover Technical Details
- Model: P-ESV300M-R2 (Blind Cover Series)
- Type: Threaded port sealing cap for pneumatic components
- Material: Nickel-plated brass alloy (corrosion resistant)
- Thread specification: G1/8 (ISO228-1 compliant)
- Seal type: Integrated EPDM O-ring (permanent compression design)
- Pressure rating: 0.05-1.0 MPa operating range
- Temperature tolerance: -20℃ to 120℃
- Installation torque: Recommended 1.2-1.5 N·m
- Surface treatment: Electrostatic powder coating (black finish)
- Weight: 28g ±2g
- Dimensions: 16mm(D) × 12mm(H) cylindrical design
- Vibration resistance: ≤50m/s² (IEC60068-2-6 compliant)
- Reusability: 50+ installation cycles (with seal integrity)
Engineered for permanent or temporary port sealing in pneumatic systems, this blind cover features a self-locking thread design that prevents accidental loosening. The dual-material construction combines metal durability with elastomer sealing, certified for ISO8573-1:2010 air quality standards. Includes anti-rotation flats for tool-assisted installation.
- Blocking unused ports in modular valve manifolds
- Preventative maintenance covers in factory automation lines
- Dust protection for hydraulic/pneumatic test bench interfaces
- Temporary sealing during system commissioning
- Corrosive environment protection in marine equipment
Installation protocol:
Apply thread sealant (LOCTITE 577 recommended) on male threads before installation.
Torque monitoring required - over-tightening may deform sealing geometry.
Perform pressure test at 1.25× system pressure after installation.
| Property | Property Value |
|---|---|
| sku | P-ESV300M-R2 |
