Airtac P-MD Repair Kit P-MD10-R1
$3.48
Regular price
$10.98
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
P-MD10-R1
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Product Description:

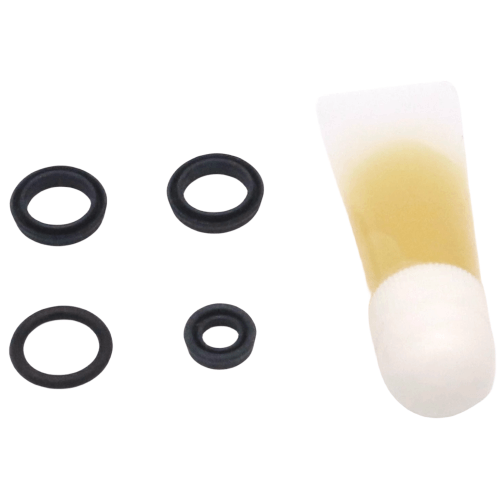

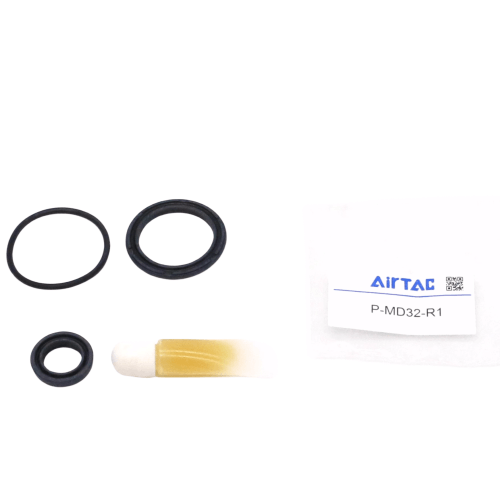

**AirTAC P-MD Series Cylinder Seal Kit**
*Category: Cylinder Seal Kits | Brand: AirTAC | Series: P-MD*
Precision-engineered for AirTAC P-MD series cylinders, this seal repair kit ensures optimal performance and extended service life of pneumatic actuators. It includes high-grade polyurethane (PU) or nitrile rubber (NBR) seals, wear rings, and O-rings tailored to withstand high-pressure cycles, temperature fluctuations, and abrasive industrial environments. The kit guarantees leak-free operation, reduced downtime, and seamless compatibility with OEM specifications. Ideal for maintenance or overhaul of reciprocating piston cylinders in automation, packaging, and machinery systems.
Key Features:
- **Material:** Premium PU/NBR compounds for durability and chemical resistance.
- **Included Components:** Piston seals, rod seals, buffer rings, and backup rings.
- **Application:** Restores cylinder integrity, prevents air leakage, and maintains consistent thrust output.
- **Compliance:** Meets ISO 6431/VDMA 24562 standards for dimensional accuracy.
*Note: Always refer to AirTAC technical documentation for proper installation guidelines.*
Critical note:
Always replace entire seal set during overhaul - partial replacement
may cause uneven wear. Use torque limiter (3-5 N·m) when tightening
end caps to prevent thread damage.
AirTAC P-MD10-R1 Cylinder Repair Kit Technical Details
- Model: P-MD10-R1
- Compatible series: P-MD10 standard bore cylinders
- Contents: 18 critical wear components
- Key components:
- Piston seals (NBR/FKM options)
- Rod seals (double-lipped design)
- Wiper rings (polyurethane)
- O-rings (AS568 standard sizes)
- Snap rings (stainless steel)
- Cushion seals (energy-absorbing design)
- Material temperature range: -30℃ to 120℃ (FKM version)
- Pressure rating: 0.05-1.2 MPa
- Weight: 220g ±5g
- Package dimensions: 185mm(L) × 95mm(W) × 35mm(H)
- Storage life: 8 years in original packaging
- Compliance: RoHS 2011/65/EU
Complete overhaul kit for MD series 10mm bore cylinders, containing all essential components to restore original performance. Features multi-material sealing solutions optimized for pneumatic cylinder reciprocating motion. Includes corrosion-inhibited packaging for critical metal parts.
Maintenance Protocol:
- Disassemble cylinder using AirTAC service tools (JIS B 4634 compliant)
- Clean components with non-petroleum-based solvent
- Replace all seals following numbered sequence in manual
- Apply silicone-free lubricant (ISO 6743-4 classification)
- Test at 0.5 MPa before full pressure operation
- Production line clamping mechanisms
- CNC machine tool actuators
- Semiconductor handling robots
- Food packaging piston units
Critical note:
Always replace entire seal set during overhaul - partial replacement
may cause uneven wear. Use torque limiter (3-5 N·m) when tightening
end caps to prevent thread damage.
| Property | Property Value |
|---|---|
| sku | P-MD10-R1 |
| Bore Diameter | <10mm> |
