Airtac P-MD Repair Kit P-MD16-R1
AirTAC P-MD16-R1 Maintenance Kit Technical Details
- Model: P-MD16-R1
- Compatible Series: P-MD16 pneumatic cylinders
- Contents: 12 essential components

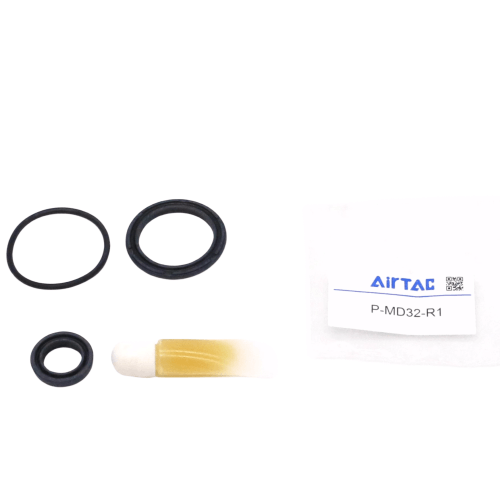

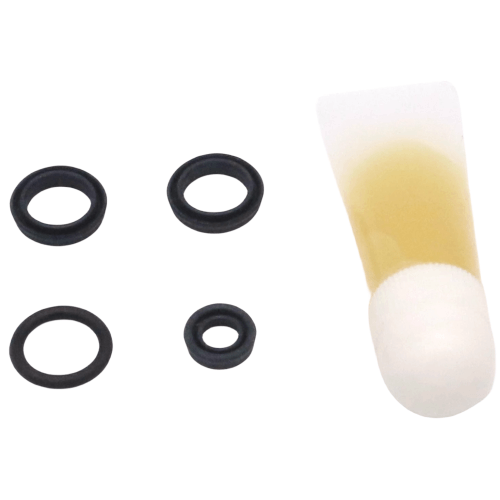

- Key Components:
- NBR piston seals (2 pcs)
- Rod seals (U-cup type)
- Wear-resistant guide rings
- Spring-loaded buffer components
- Anti-extrusion rings
- Specialty retaining clips
- Material Grade: Oil-resistant NBR (70±5 Shore A)
- Weight: 210g ±5% (including packaging)
- Dimensions: 120mm(L) × 85mm(W) × 25mm(H)
- Temperature Tolerance: -20℃ to 80℃ continuous
- Pressure Rating: Matches P-MD16 cylinder specs (0.05-1.0MPa)
- Compatible Lubricants: AirTAC PG-01 grease or ISO VG32 hydraulic oil
- Storage Life: 5 years in original sealed packaging
Complete overhaul kit engineered for P-MD16 series compact cylinders, containing wear-prone components for full pneumatic circuit rehabilitation. Features precision-molded seals with anti-abrasion additives, optimized for high-cycle applications. Kit components undergo 100% dimensional verification.
- Cylinder rebuilds after 500,000+ cycles
- Preventive maintenance for pick-and-place robots
- Restoration of pneumatic grippers in dusty environments
- FDA-compliant food processing line repairs
- High humidity environment overhauls
Service recommendation:
Always degrease metal components with isopropyl alcohol before assembly.
Use torque-controlled tools (0.8-1.2Nm) for clip installation to prevent seal distortion.
| Property | Property Value |
|---|---|
| sku | P-MD16-R1 |
| Bore Diameter | 16mm |
