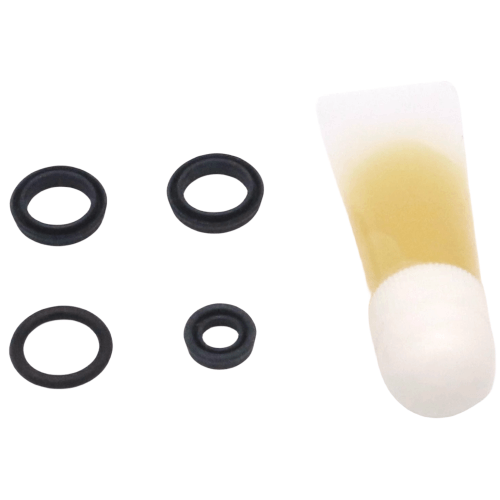

Airtac P-MD Repair Kit P-MD25-R1
AirTAC P-MD25-R1 Cylinder Repair Kit Technical Details
- Model: P-MD25-R1 (MD Series Maintenance Kit)
- Compatible Cylinder Bore: ø25mm
- Component Count: 14 precision-matched parts
- Seal Types: Piston seals (x2), Rod seals (x3), Buffer seals (x2), Wear bands (x2)
- Material Composition:
- Primary Seals: Nitrile rubber (NBR) with glass fiber reinforcement
- Backup Rings: Polyurethane (PU90)
- Springs: SUS304 stainless steel
- Temperature Tolerance: -30℃ to +110℃ (instantaneous peak 130℃)
- Pressure Rating: 0.05-1.2 MPa (optimized for 0.1-0.8 MPa operation)
- Weight: 95g ±3g (including anti-corrosion packaging)
- Package Dimensions: 105mm(L) × 75mm(W) × 18mm(H)
- Storage Life: 5 years in original vacuum-sealed packaging
- Compliance: ISO 15552 pneumatic standards
Comprehensive maintenance solution for MD series cylinders, featuring laser-etched orientation marks on critical seals for error-proof installation. The kit includes wear-compensation components designed for high-cycle applications (up to 15 million strokes). Seals utilize multi-lip geometry with hydrodynamic grooves to prevent extrusion under side load conditions.
- Mandatory for 5,000-hour preventive maintenance cycles
- Critical in contaminated environments (ISO 8573-1 Class 4.4.3)
- Required after cylinder disassembly for troubleshooting
- Essential for restoring <3μm leakage rate performance
- Plastic injection molding machine ejectors
- CNC chip conveyor actuators
- Automated palletizing systems
- Food processing linear actuators (FDA-compliant grease version available)
Installation protocol:
Degrease components with isopropyl alcohol before assembly.
Apply MIL-G-81322 grease to seal grooves using dedicated tools.
Torque end caps to 12-15Nm using crisscross pattern.
| Property | Property Value |
|---|---|
| sku | P-MD25-R1 |
| Bore Diameter | <25 mm> |
