Airtac P-MD Repair Kit P-MD32-R1
AirTAC P-MD32-R1 Pneumatic Cylinder Repair Kit Technical Details
- Model Compatibility: Designed for MD32 series cylinders (MD32×S/M/L variants)
- Seal Material: Premium NBR (Buna-N) & Fluorocarbon compounds
- Temperature Range: -20℃ to 100℃ (NBR) / -10℃ to 150℃ (Fluorocarbon optional)
- Pressure Range: 0.1-1.0 MPa (1-10 bar)

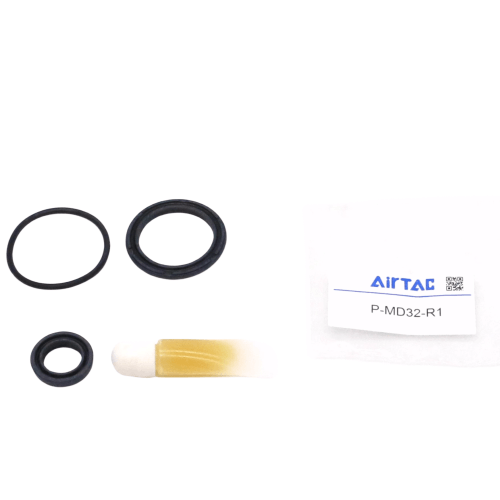

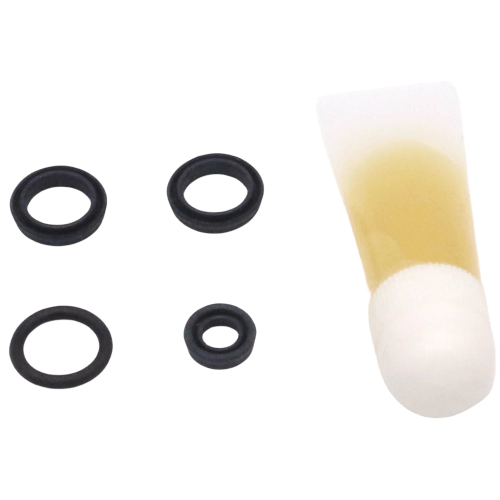

- Package Contents:
- Piston seals (2x φ32mm)
- Rod seals (1x φ12mm)
- Wiper seals (1x φ16mm)
- O-rings (4x 3.5×1.8mm NBR)
- Cushion rings (2x EPDM)
- Backup washers (2x POM)
- Weight: 185g ±5g (including anti-static packaging)
- Dimensions: 120mm(L) × 80mm(W) × 30mm(H) (vacuum-sealed blister pack)
- Storage Conditions: 15-25℃ in UV-resistant packaging, 5-year shelf life
- Compliance: RoHS 2.0 compliant, ISO 9001:2015 certified production
Professional-grade maintenance solution for MD32 pneumatic cylinders, containing precision-molded replacement seals and wear components. Features dual-material options for varied operating environments - standard NBR for general use and fluorocarbon for high-temperature/hydraulic oil applications. Each component undergoes 100% dimensional verification with ±0.02mm tolerance control.
- Disassemble cylinder using 8mm hex key (torque ≤35N·m)
- Clean components with non-petroleum-based solvent
- Lubricate new seals with MIL-G-7711A grease
- Assemble using seal installation mandrel (φ32-0.1mm)
- Pressure test at 0.6MPa for 5 cycles minimum
- Preventive maintenance in injection molding machines
- Overhaul of automated material handling systems
- Food processing line cylinder refurbishment
- High-cycle applications (>1 million strokes)
Pro Tip:
For pneumatic systems using oil mist lubrication, replace cushion rings every 2nd seal replacement cycle.
Always inspect rod bearing surfaces for scoring (Ra ≤0.8μm) during maintenance.
| Property | Property Value |
|---|---|
| sku | P-MD32-R1 |
| Bore Diameter | <32 mm> |
