Airtac P-MDD Repair Kit P-MDD10-R1
$3.48
Regular price
$10.98
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
P-MDD10-R1
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

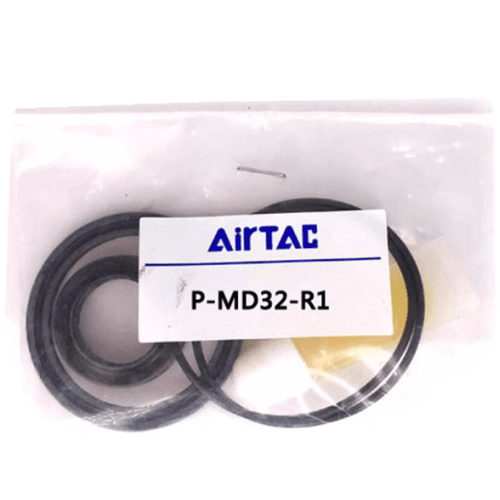

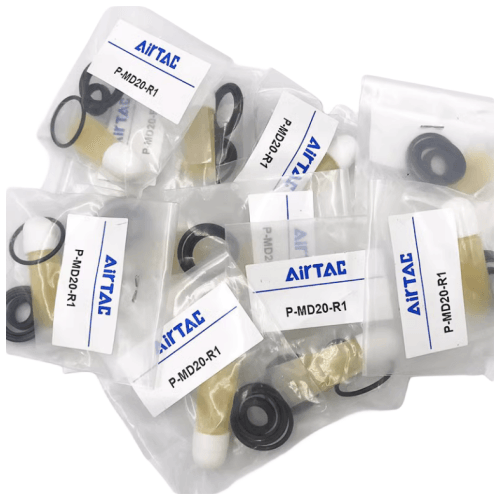

Product Name: AirTAC P-MDD Series Pneumatic Cylinder Seal Ring Repair Kit
Description:
This professional-grade repair kit is specifically designed for the maintenance and overhaul of AirTAC P-MDD series pneumatic cylinders. It contains precision-engineered sealing components including rod seals, piston seals, wipers, and O-rings manufactured from high-performance materials (NBR/PU) to ensure optimal leak resistance and extended service life. The kit complies with original equipment specifications, enabling efficient restoration of cylinder functionality while minimizing downtime in industrial automation systems. Compatible with ISO/VDMA standard pneumatic cylinder configurations, it serves as an essential solution for preventive maintenance or post-failure repair scenarios in material handling, packaging machinery, and automated production line applications.
Critical:
Use within 48 hours after opening and avoid mixing old/new seals.
Post-maintenance cycle test required (50 full strokes minimum).
AirTAC P-MDD10-R1 Maintenance Kit Technical Details
- Model: P-MDD10-R1 (Repair Kit for MDD Series)
- Compatible Models: MDD10, MDD12, MDD16, MDD20
- Component Count: 28 precision parts
- Key Components:
- PTFE main seals (2 sets)
- NBR O-rings (5 sizes)
- SUS304 spring set
- Precision guide rings
- Wear-resistant piston cups
- Material Composition:
- Seals: NBR/Nitrile (Oil-resistant grade: IRM903 oil)
- Metal Parts: Carbon steel with anti-corrosion coating
- Springs: Stainless steel SUS304
- Weight: 320g ±5g (complete kit)
- Package Dimensions: 180mm(L) × 95mm(W) × 25mm(H)
- Storage Temperature: -15℃ to 40℃ (unopened)
- Service Life: 500,000 cycles (when properly installed)
- Fluid Compatibility: Air (ISO8573-1:2010 Class 3.4.3)
Complete overhaul solution for MDD series pneumatic cylinders, containing all wear-prone components for full maintenance. Features laser-etched component diagrams for assembly guidance. Kit components are vacuum-sealed in anti-static packaging with desiccant for shelf stability.
Maintenance Scenarios:
- Cylinder rebuidling after 2+ years of continuous operation
- Air leakage compensation in automated assembly lines
- Preventive maintenance for high-cycle applications (500+ activations/day)
- Restoration of pneumatic pressure consistency in CNC machinery
Replacement Protocol:
- Depressurize system and clean cylinder exterior
- Disassemble using torque-controlled tools (max 5Nm)
- Replace components using provided alignment jig diagram
- Apply included silicone-based lubricant (0.3g per seal)
- Test at 0.3MPa before full pressure operation
Critical:
Use within 48 hours after opening and avoid mixing old/new seals.
Post-maintenance cycle test required (50 full strokes minimum).
| Property | Property Value |
|---|---|
| sku | P-MDD10-R1 |
| Bore Diameter | <10mm> |
