Airtac P-MDD Repair Kit P-MDD20-R1
$3.68
Regular price
$11.18
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
P-MDD20-R1
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

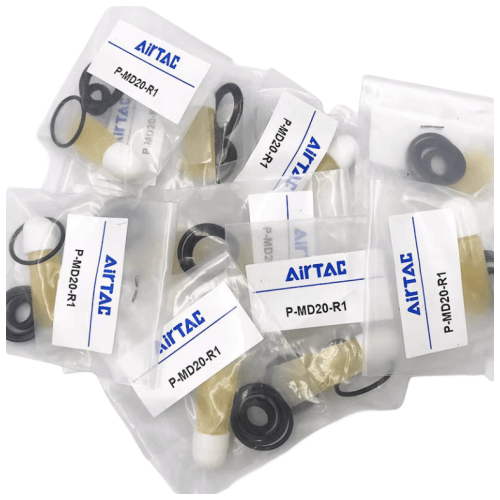

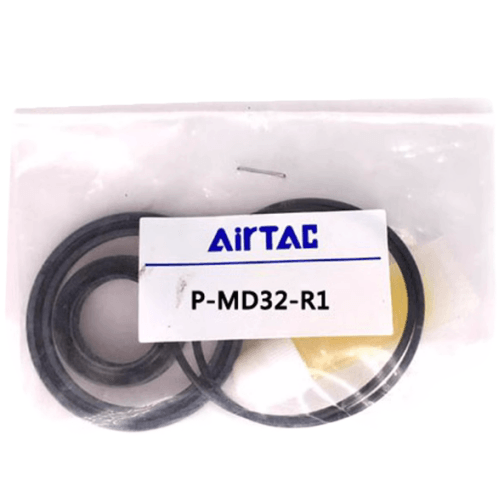

Product Name: AirTAC P-MDD Series Pneumatic Cylinder Seal Ring Repair Kit
Description:
This professional-grade repair kit is specifically designed for the maintenance and overhaul of AirTAC P-MDD series pneumatic cylinders. It contains precision-engineered sealing components including rod seals, piston seals, wipers, and O-rings manufactured from high-performance materials (NBR/PU) to ensure optimal leak resistance and extended service life. The kit complies with original equipment specifications, enabling efficient restoration of cylinder functionality while minimizing downtime in industrial automation systems. Compatible with ISO/VDMA standard pneumatic cylinder configurations, it serves as an essential solution for preventive maintenance or post-failure repair scenarios in material handling, packaging machinery, and automated production line applications.
Service protocol:
Always degrease valve body with ISO Class 3 air before installation.
Apply MIL-G-81322 grease to sliding surfaces. Torque cap screws
to 1.2-1.5 N·m using crisscross pattern.
AirTAC P-MDD20-R1 Repair Kit Technical Details
- Model Compatibility: Designed for P-MDD20 series pilot-operated check valves
- Kit Contents: 12 critical components including:
- NBR main seal set (x3)
- Stainless steel spring set (x2)
- Precision guide rings (x4)
- Valve poppet assembly (x1)
- Anti-extrusion washers (x2)
- Material Standards: ISO 3601-3 compliant NBR seals, DIN 2095 springs
- Pressure Range: 0.05-1.0 MPa (operational), 1.5 MPa burst pressure
- Temperature Tolerance: -30℃ to 100℃ (continuous use), 120℃ peak
- Weight: 85g ±3g (including anti-static packaging)
- Package Dimensions: 120mm(L) × 75mm(W) × 25mm(H)
- Shelf Life: 5 years in original sealed packaging
- Chemical Resistance: Compatible with ISO VG32 hydraulic oil and most industrial lubricants
Professional maintenance kit for restoring leakage-prone check valves in pneumatic circuits. Includes wear-resistant components optimized for high-cycle applications (up to 10 million operations). Features laser-etched installation guides on critical seals for error-proof assembly.
Implementation Scenarios:
- Preventive maintenance in automated assembly line clamping systems
- Emergency repair of material handling vacuum circuits
- Overhauling CNC machine tool pneumatic brakes
- Refurbishing injection molding machine safety interlocks
Service protocol:
Always degrease valve body with ISO Class 3 air before installation.
Apply MIL-G-81322 grease to sliding surfaces. Torque cap screws
to 1.2-1.5 N·m using crisscross pattern.
| Property | Property Value |
|---|---|
| sku | P-MDD20-R1 |
| Bore Diameter | <20mm> |
