Airtac P-MDD Repair Kit P-MDD25-R1
AirTAC P-MDD25-R1 Repair Kit Technical Details
- Model: P-MDD25-R1
- Compatible with: P-MDD series 25mm bore cylinders

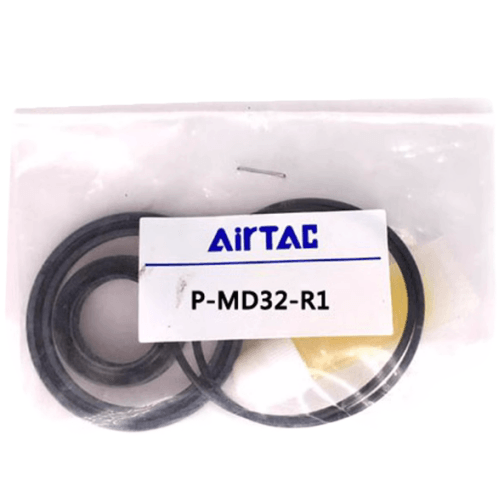

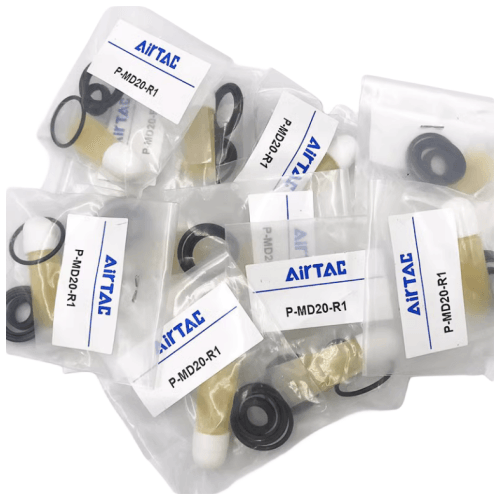

- Package contents: Piston seals, rod seals, wear rings, O-rings, backup rings
- Material composition: NBR (nitrile) rubber & polyurethane components
- Temperature tolerance: -20℃ to 80℃ (continuous operation)
- Pressure rating: 0.05-1.0 MPa (matches cylinder specs)
- Weight: 120g ±5g (including packaging)
- Dimensions: 150mm(L) × 80mm(W) × 25mm(H)
- Storage conditions: Darkened PE bag with desiccant, humidity <70%
- Shelf life: 5 years from manufacture date
- Compliance: RoHS 2011/65/EU compliant
Complete maintenance solution for P-MDD25 pneumatic cylinders, containing precision-molded replacement seals and wear components. Features anti-extrusion designs and micro-groove patterns for enhanced lubrication retention. All elements undergo 100% dimensional inspection and surface finish testing (Ra ≤0.8μm).
- Preventive maintenance cycles (recommended every 500k cycles)
- Post-contamination events (particle ingress recovery)
- Rebuilding cylinders with degraded positioning accuracy
- Restoring pneumatic efficiency in high humidity environments
- Depressurize cylinder and clean exterior
- Disassemble using proper C-clip pliers (AFC-25 tool recommended)
- Replace all seals following assembly torque sequence (2.5-3.0N·m)
- Apply silicone-free grease (ISO VG 32 equivalent)
- Conduct 50-stroke run-in test at 0.3MPa
Critical note:
Never mix old and new rod seals. Always replace complete seal set to prevent
uneven compression rates. Post-rebuild leakage exceeding 5cc/min indicates
improper installation.
| Property | Property Value |
|---|---|
| sku | P-MDD25-R1 |
| Bore Diameter | <25 mm> |
