Airtac P-SCT Repair Kit P-SCT100N-R1
AirTAC P-SCT100N-R1 Repair Kit Technical Details
- Model: P-SCT100N-R1
- Compatible Series: SCT-100N directional control valves

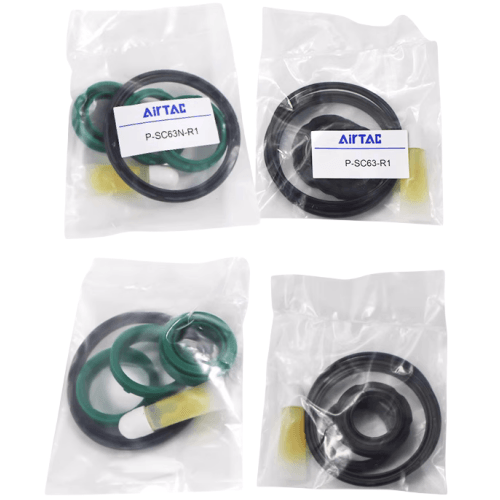

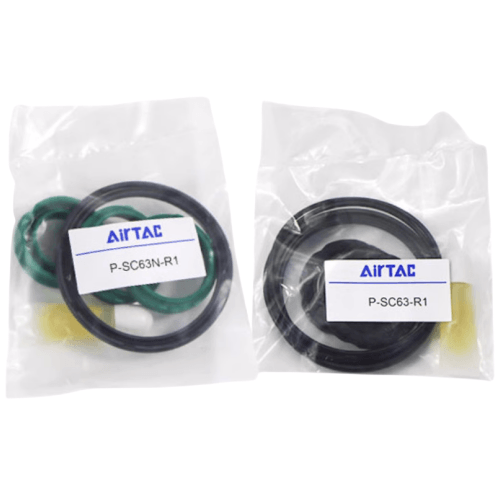

- Components: O-rings (NBR/PU), seal plates, cushion rings, retaining rings, backup washers
- Material Composition:
- Primary seals: 90% NBR / 10% PU blend
- Backup components: Glass-filled POM
- Anti-extrusion rings: HNBR-coated steel
- Temperature Tolerance: -30℃ to 120℃ (continuous operation)
- Pressure Range: 0.05-1.2 MPa (7-174 PSI)
- Weight: 85g ±2g (per kit)
- Package Dimensions: 120mm(L) × 80mm(W) × 15mm(H)
- Storage Conditions: Dry environment below 40℃/75% RH
- Shelf Life: 5 years in original vacuum-sealed packaging
- Chemical Resistance: Compatible with ISO VG32 hydraulic fluids and most pneumatic oils
- Set Contents: 23 precision components (including 5 wear-compensation shims)
Complete overhaul solution for SCT-100N pneumatic valves, featuring upgraded anti-blowout stem seals and precision-lapped sealing surfaces. Includes wear-indicator shims (0.1mm increments) for predictive maintenance scheduling. All components undergo 100% helium leak testing during manufacturing.
- High-cycle automation lines (automotive welding robots)
- Food processing pneumatic systems requiring FDA-compliant seals
- Subsea equipment valve maintenance (with supplementary marine-grade grease)
- High-temperature plastic injection molding machines
- Pharmaceutical cleanroom actuator systems
Installation protocol:
Components must be installed in sequence using torque-controlled tools (0.8-1.2Nm).
Requires post-installation pressure ramp-up procedure: 0.2MPa increments every 15 minutes
until reaching operational pressure. Lubricate with ISO 32 equivalent grease during assembly.
| Property | Property Value |
|---|---|
| sku | P-SCT100N-R1 |
