Airtac P-SDA Repair Kit P-SDA12-R2
AirTAC P-SDA12-R2 Repair Kit Technical Details
- Model Compatibility: Designed for P-SDA series directional control valves

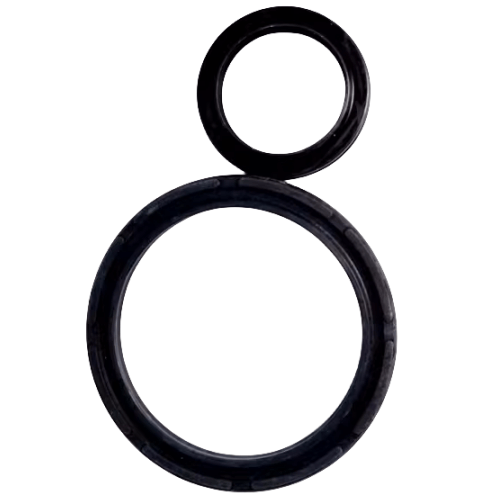

- Kit Contents: Seal set (O-rings, backup rings), spring set, spool components, guide rings
- Material Specifications:
- Seals: Nitrile rubber (NBR) standard / Fluorocarbon (FKM) optional
- Springs: Stainless steel SUS304
- Sliding parts: POM composite
- Temperature Range: -20℃ to 80℃ (NBR) / -10℃ to 150℃ (FKM)
- Pressure Rating: Compatible with valve operating pressure 0-1.0 MPa
- Package Weight: 230g ±5% (including protective packaging)
- Package Dimensions: 180mm(L) × 120mm(W) × 25mm(H)
- Storage Conditions: Dry environment below 40℃, away from ozone/UV sources
- Shelf Life: 5 years in original sealed packaging
Comprehensive maintenance solution for restoring pneumatic valve performance, containing all wear-prone components for complete overhaul. Features precision-molded seals with ≤0.01mm dimensional tolerance for leak-free operation. Kit includes anti-static treated components for dust-sensitive environments.
- Preventive maintenance in high-cycle automation lines (200,000+ actuations)
- Post-contamination events requiring full valve rehabilitation
- Retrofitting older valves to current production specifications
- Field service repairs for food/beverage production equipment
- Depressurize system and clean valve exterior
- Disassemble valve using torque-controlled tools (4-6Nm max)
- Replace all kit components following assembly diagram sequence
- Apply silicone-free lubricant (viscosity 50-70 cSt)
- Test at 0.5MPa with leakage ≤3 bubbles/min (ISO 6952-1 standard)
Critical Note:
Component orientation affects sealing performance - colored alignment marks on seals must face pressure direction. Not compatible with phosphate ester fluids.
| Property | Property Value |
|---|---|
| sku | P-SDA12-R2 |
