Airtac P-SDA Repair Kit P-SDA40-R2
AirTAC P-SDA40-R2 Repair Kit Technical Details
- Model Compatibility: Designed for P-SDA series 40mm bore cylinders

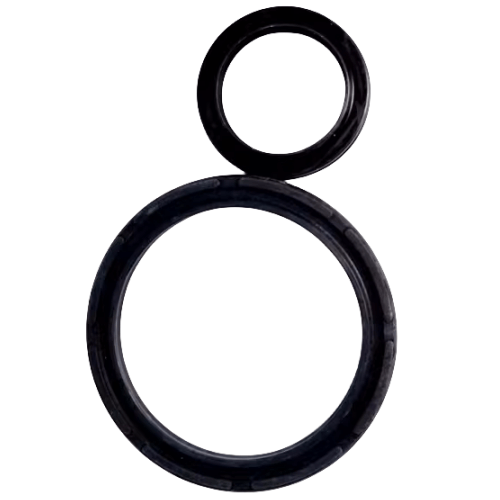

- Kit Contents: Piston seals, rod seals, wear bands, O-rings, cushion rings, backup washers
- Material Composition: NBR (Nitrile) rubber seals, POM (Polyoxymethylene) wear components
- Temperature Range: -30℃ to 100℃ (intermittent peak 120℃)
- Pressure Rating: Compatible with 0.05-1.2 MPa systems
- Weight: 0.28kg (including packaging)
- Dimensions: 160mm(L) × 95mm(W) × 35mm(H)
- Storage Humidity: ≤65% RH (non-condensing)
- Shelf Life: 5 years in original sealed packaging
- Compliance: RoHS 2.0 compliant
Comprehensive maintenance solution for rebuilding 40mm bore pneumatic cylinders. Features oil/fuel-resistant NBR compounds and precision-molded POM guides. Kit includes pre-lubricated components with anti-extrusion designs, optimized for high-cycle applications. Requires ISO 8573-1:2010 [4:4:3] class compressed air.
- Preventive maintenance in automotive assembly line actuators
- Rehabilitation of food processing equipment cylinders
- Rebuilding material handling systems in warehouse automation
- Maintenance of injection molding machine ejectors
Service recommendation:
Replace all seals simultaneously using cleanroom procedures.
Apply silicone-free lubricant (ISO VG 32 equivalent) during assembly.
Torque end caps to 12-15N·m using crisscross pattern.
| Property | Property Value |
|---|---|
| sku | P-SDA40-R2 |
