Airtac P-SDA Repair Kit P-SDA80-R1
AirTAC P-SDA80-R1 Cylinder Repair Kit Technical Details
- Model: P-SDA80-R1
- Compatible series: SDA cylinder bore size Ø80 (SDA80x5~SDA80x500)

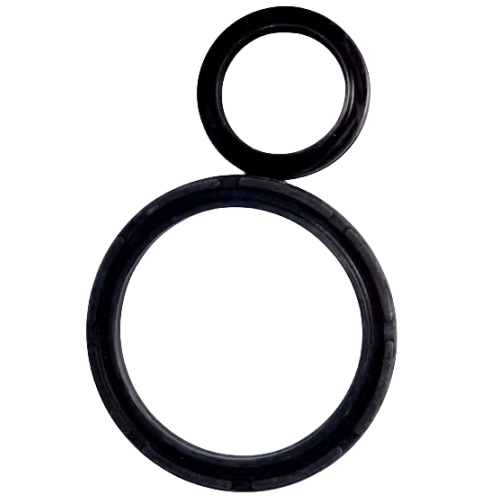

- Components included:
- Primary piston seal (NBR/PU) x2
- Rod seal (double-lip design) x1
- Wiper seal (metal-free) x1
- O-rings (AS568-XXX sizes) x4
- Guide bush (wear-resistant polymer) x1
- Cushion seal set (adjustable type) x1
- Material specifications:
- Seals: 90±2 Shore A hardness
- Piston: Aluminum alloy with oxidation coating
- Bushings: Glass fiber reinforced polyamide
- Weight: 850g ±5% (complete kit)
- Package dimensions: 200mm(L) × 150mm(W) × 50mm(H)
- Temperature tolerance: -20℃ to 100℃ (operational)
- Pressure rating: Compatible with 0.05-1.2MPa systems
- Storage conditions: -10℃ to 40℃, RH below 70% non-condensing
Complete overhaul kit for SDA80 series ISO pneumatic cylinders, containing precision-matched components to restore factory-level performance. Features upgraded wear-resistant materials and includes specialized installation tools (alignment pins included in packaging). Designed for 5,000+ cycle maintenance intervals under standard operating conditions.
- Factory maintenance: Scheduled cylinder refurbishment in automotive welding lines
- Emergency repair: Fixing seal failures in injection molding machine ejectors
- Retrofit upgrade: Replacing legacy seals with low-friction versions
- Preventive maintenance: Annual servicing of material handling cylinders
Service protocol:
Disassemble using torque-controlled tools (max 25Nm), clean with non-petroleum solvents,
apply AirTAC PX-30 silicone grease (included) during reassembly. Test at 0.5MPa before full operation.
