Airtac P-SDAD Repair Kit P-SDAD80-R2
AirTAC P-SDAD80-R2 Cylinder Repair Kit Specifications
- Model: P-SDAD80-R2
- Compatible Series: SDAD80 double-acting cylinders

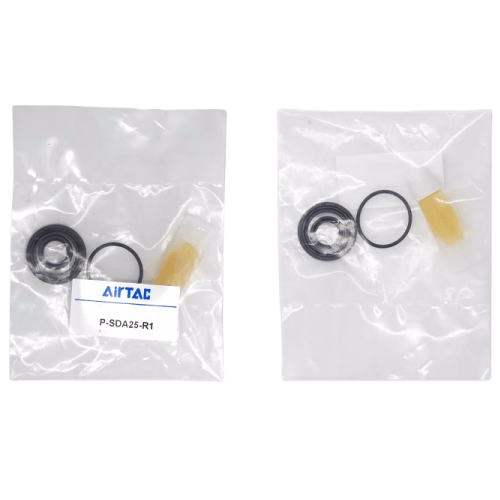

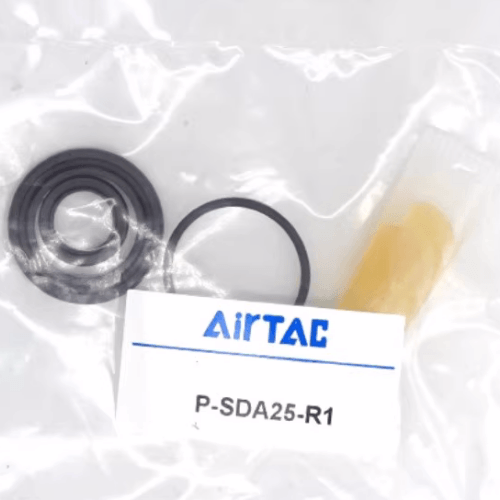

- Component Set: Piston seals, rod seals, wear bands, O-rings, cushion rings, backup washers
- Material Composition: NBR (Nitrile) + PU (Polyurethane) composite seals
- Temperature Range: -20℃ to +80℃
- Pressure Range: 0.05-1.2 MPa
- Weight: 240g ±5%
- Package Dimensions: 80mm(L) × 60mm(W) × 30mm(H)
- Storage Humidity: ≤95% RH (non-condensing)
- Lubrication Requirement: Requires ISO VG32 hydraulic oil impregnation before installation
- Replaces OEM Part Numbers: SDAD80-01~SDAD80-05 series components
Complete overhaul kit for SDAD80 pneumatic cylinders, containing precision-matched components to restore factory-grade sealing performance. Features anti-extrusion reinforced seals and pre-calibrated tension springs. Includes wear-compensation spacers for maintaining consistent stroke accuracy.
- Preventive maintenance cycles in automated assembly lines
- Rehabilitation of leaky cylinders in packaging machinery
- Rebuilding actuators in CNC clamping systems
- Overhauling material handling equipment cylinders
- Servicing robotic arm pneumatic joints
Maintenance protocol:
Always replace complete seal set (do not mix old/new components).
Clean cylinder bore with alcohol-based solvent (no silicone) and inspect
rod surface roughness (Ra ≤0.8μm) before installation.
Run 5 full cycles at 0.3MPa after repair for seal seating.
| Property | Property Value |
|---|---|
| sku | P-SDAD80-R2 |
