Airtac P-TN Repair Kit P-TN10-R2
$9.27
Regular price
$16.77
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
P-TN10-R2
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Product Category: Pneumatic Cylinder Seal Repair Kits
Brand: Airtac
Series: P-TN
Engineered for precision maintenance of pneumatic systems, Airtac P-TN Series Seal Repair Kits contain OEM-grade sealing components including wear bands, piston seals, and rod seals. Designed specifically for P-TN cylinder series, these kits ensure leak-free operation and extended service life in industrial automation applications. Compliant with ISO 6431 standards for dimensional compatibility and performance reliability.
Maintenance protocol:
Replace all seals simultaneously using cleanroom tools.
Apply lithium soap-based grease (ISO grade 2) to sliding surfaces.
Torque end caps to 3.5N·m ±10%.
AirTAC P-TN10-R2 Repair Kit Technical Details
- Model: P-TN10-R2
- Compatible Series: TN-10/TC-10 series cylinders

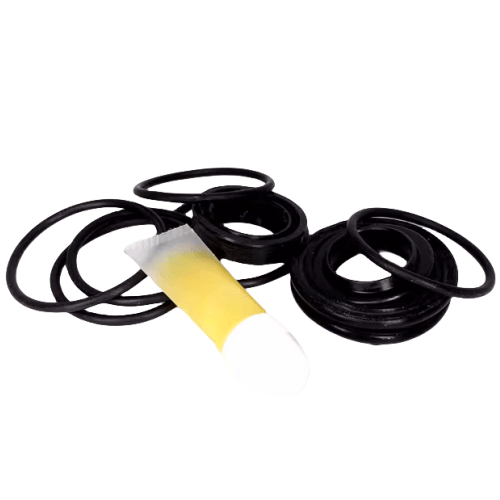

- Components Included:
- Piston seals (NBR) ×2
- Rod seals (PU) ×2
- Wear bands (PTFE) ×2
- O-rings (NBR) ×4 (sizes 3×1.5mm and 6×2mm)
- Cushion rings ×2
- Backup washers ×2
- Material Compatibility:
- Seals: Oil-resistant NBR (-20℃ to 80℃)
- Lubricant: Compatible with ISO VG32 hydraulic oil
- Weight: 85g ±5g (including packaging)
- Package Dimensions: 120mm(L) × 75mm(W) × 25mm(H)
- Storage Conditions: 5-35℃, RH ≤75%, avoid UV exposure
- Service Life: 5,000km stroke (under ISO 6431 standard)
- Pressure Rating: Matches original cylinder specs (0.05-1.0MPa)
Complete maintenance solution for TN-10 series compact cylinders, containing precision-molded replacement seals and wear components. Designed for factory overhauls and preventive maintenance programs. Components are pre-lubricated with silicone-free grease for immediate installation.
Application Scenarios:
- Rebuilding pneumatic grippers in robotic arms
- Overhauling automated conveyor cylinder blocks
- Maintaining packaging machine ejector units
- Servicing CNC machine tool clamping devices
Maintenance protocol:
Replace all seals simultaneously using cleanroom tools.
Apply lithium soap-based grease (ISO grade 2) to sliding surfaces.
Torque end caps to 3.5N·m ±10%.
⚠️ Critical Note:
Not compatible with phosphate ester fluids or temperatures above 80℃.
Perform functional test at 0.5MPa for 10 cycles before returning to service.
