Airtac P-TN Repair Kit P-TN16-R1
$5.08
Regular price
$12.58
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
P-TN16-R1
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Product Category: Pneumatic Cylinder Seal Repair Kits
Brand: Airtac
Series: P-TN
Engineered for precision maintenance of pneumatic systems, Airtac P-TN Series Seal Repair Kits contain OEM-grade sealing components including wear bands, piston seals, and rod seals. Designed specifically for P-TN cylinder series, these kits ensure leak-free operation and extended service life in industrial automation applications. Compliant with ISO 6431 standards for dimensional compatibility and performance reliability.
Installation guidance:
Clean cylinder bore with IPA before assembly. Apply additional silicone-free grease
(ISO VG 32 equivalent) to rod seals. Torque end caps to 2.5-3.0 N·m using crisscross pattern.
AirTAC P-TN16-R1 Repair Kit Technical Details
- Model: P-TN16-R1 (TN Series Maintenance Kit)
- Compatible Components: For TN16/TN20 cylinder series
- Seal Materials: NBR (Nitrile) & PU (Polyurethane) compound
- Temperature Range: -20℃ to 80℃
- Pressure Rating: 0.05-1.0 MPa

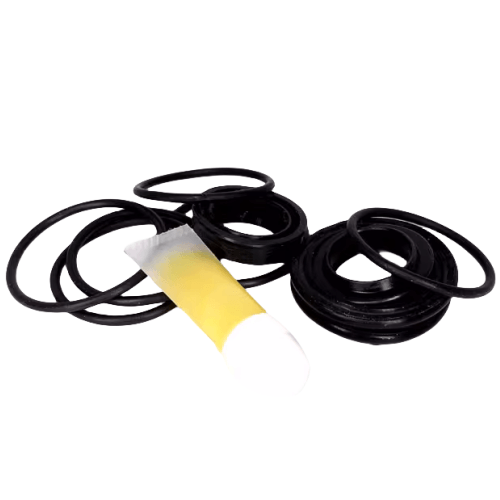

- Included Parts: 23 pieces (Piston seals, rod seals, wear rings, O-rings)
- Lubrication: Pre-coated with Molub-Alloy 771 grease
- Weight: 120g ±5g
- Dimensions: 40mm(L) × 25mm(W) × 15mm(H)
- Shelf Life: 5 years in original packaging
- Certification: RoHS compliant
Complete overhaul kit for TN series compact cylinders, containing all critical wear components. Features oil-resistant seals with reinforced lip design for 500,000+ cycle durability. Includes specialized buffer seals to prevent metal-to-metal contact during high-speed operation.
Application Scenarios:
- Preventive maintenance of automation line actuators
- Rebuilding pneumatic grippers in robotic systems
- Overhauling packaging machine cylinder assemblies
- Restoring medical equipment pneumatic components
Installation guidance:
Clean cylinder bore with IPA before assembly. Apply additional silicone-free grease
(ISO VG 32 equivalent) to rod seals. Torque end caps to 2.5-3.0 N·m using crisscross pattern.
| Property | Property Value |
|---|---|
| sku | P-TN16-R1 |
