Airtac P-TN Repair Kit P-TN16-R2
AirTAC P-TN16-R2 Repair Kit Technical Details
- Model: P-TN16-R2 (TN Series Maintenance Kit)
- Compatible Cylinder Bore: Ø16mm
- Seal Types Included:
- Piston seals (2 pcs) - Polyurethane
- Rod seals (2 pcs) - NBR with PTFE coating
- Wear bands (2 pcs) - Glass-filled POM
- O-rings (4 sizes) - HNBR/NBR
- Dust wipers (2 pcs) - Polyurethane lip seals
- Temperature Range: -30℃ to 100℃ (momentary 120℃)
- Pressure Rating: 0.05-1.2 MPa
- Lubrication Requirement: ISO VG32 hydraulic oil compatible
- Weight: 185g ±5g (including packaging)
- Dimensions: 120mm(L) × 85mm(W) × 25mm(H)
- Storage Conditions: 15-25℃ dry environment, avoid UV exposure

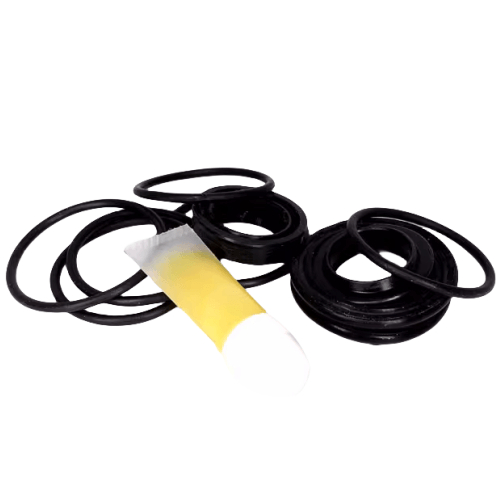

- Kit Contents: 18 components + installation guide
Comprehensive maintenance solution for AirTAC TN16 series cylinders, containing wear-resistant seals and precision-machined components. Features low-friction materials optimized for high-cycle applications (up to 15 million cycles). Includes anti-extrusion rings for pressure spikes protection.
- Mandatory replacement interval: Every 5,000 operating hours or 2 years
- Ideal for:
- Pick-and-place robot arm actuators
- Packaging machine clamping cylinders
- Automated assembly line pushers
- Food processing pneumatic systems (FDA-compliant versions available)
Maintenance protocol:
Clean cylinder bore with non-linting cloth and isopropyl alcohol before installation.
Apply silicone-free grease (ISO-L-EGD certified) to rod seals. Torque end caps to 8-10 N·m.
Critical Note:
Do NOT mix old/new seals in same assembly. Full kit replacement ensures
pressure balance and prevents premature failure.
| Property | Property Value |
|---|---|
| sku | P-TN16-R2 |
