Airtac P-TN Repair Kit P-TN20-R2
$12.06
Regular price
$19.56
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
P-TN20-R2
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

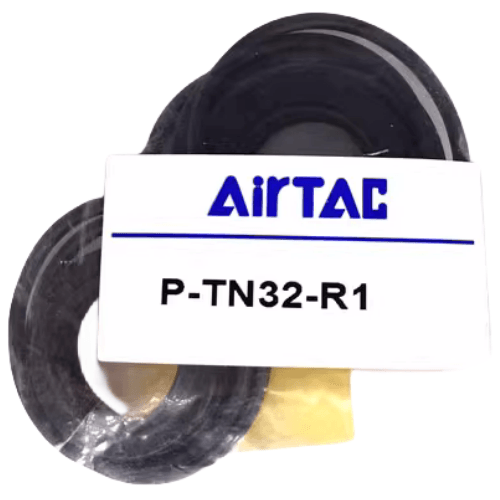

Product Category: Pneumatic Cylinder Seal Repair Kits
Brand: Airtac
Series: P-TN

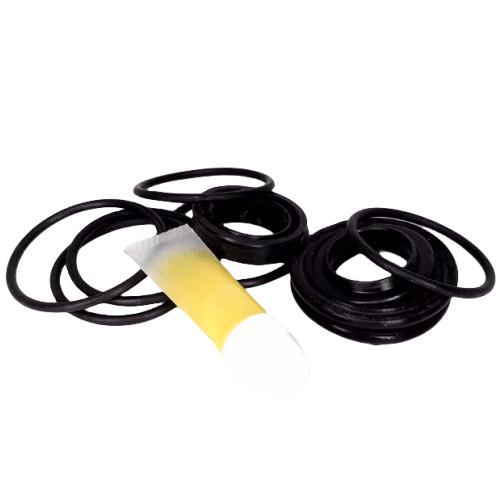

Engineered for precision maintenance of pneumatic systems, Airtac P-TN Series Seal Repair Kits contain OEM-grade sealing components including wear bands, piston seals, and rod seals. Designed specifically for P-TN cylinder series, these kits ensure leak-free operation and extended service life in industrial automation applications. Compliant with ISO 6431 standards for dimensional compatibility and performance reliability.
Service protocol:
Always degrease valve cavities with isopropyl alcohol before installation.
Torque limit: 1.2-1.5N·m for housing screws. Perform pneumatic test at
0.3MPa before returning to service.
AirTAC P-TN20-R2 Repair Kit Technical Details
- Model compatibility: TN-20 series solenoid valves
- Kit contents: 22 components (seal set, spring kit, core assembly)
- Seal material: HNBR (Hydrogenated Nitrile) with PTFE coating
- Temperature tolerance: -30℃ to 120℃
- Pressure rating: Compatible with 0.05-1.0 MPa systems
- Chemical resistance: Resists hydraulic oils, weak acids, and alkalis
- Weight: 85g ±2g (including packaging)
- Dimensions: 120mm(L) × 80mm(W) × 25mm(H) blister pack
- Shelf life: 5 years in original packaging
- Storage conditions: Keep in dry environment below 40℃/70% RH
Comprehensive maintenance solution for TN-20 series valves, containing wear-resistant replacement parts precision-machined to 0.01mm tolerance. The HNBR seals feature enhanced compression set resistance (≤15% @100℃) for repeated disassembly cycles.
Implementation Guide:
- Factory maintenance cycles (every 5M actuations)
- Emergency repair of leaking valves in packaging lines
- Preventive maintenance for automotive paint spray systems
- Retrofit upgrades in high-temperature food processing equipment
Service protocol:
Always degrease valve cavities with isopropyl alcohol before installation.
Torque limit: 1.2-1.5N·m for housing screws. Perform pneumatic test at
0.3MPa before returning to service.
| Property | Property Value |
|---|---|
| sku | P-TN20-R2 |
