Airtac P-TN Repair Kit P-TN25-R1
AirTAC P-TN25-R1 Cylinder Repair Kit Technical Details
- Model: P-TN25-R1
- Compatible series: TN series standard cylinders (TN16-TN50)

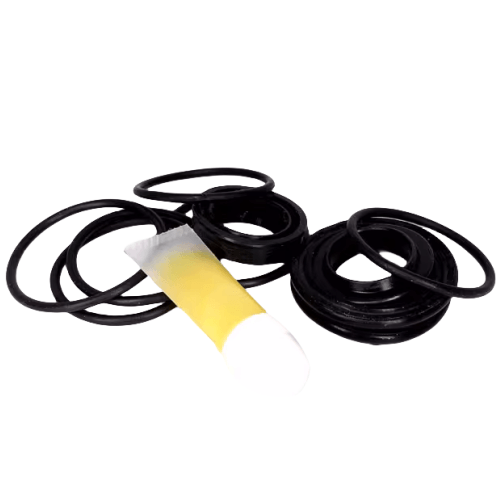

- Components included: 32 pcs (Piston seals, rod seals, O-rings, wear rings, cushion rings)
- Seal material: Premium NBR rubber (70±5 Shore A)
- Temperature range: -20℃ to 80℃ (continuous use)
- Pressure rating: 0.05-1.0 MPa
- Weight: 185g ±5g (complete kit)
- Package dimensions: 150mm(L) × 85mm(W) × 25mm(H)
- Storage conditions: Dry environment below 40℃, away from ozone/UV
- Compliance: RoHS 2011/65/EU
Complete maintenance solution for TN series cylinders, containing wear-resistant replacement seals precisely matched to original specifications. Features anti-extrusion design for high pulse resistance (up to 1.5 million cycles). Kit includes corrosion-inhibited components for extended shelf life.
- Preventive maintenance of automation line cylinders
- Overhauling pneumatic actuators in packaging machinery
- Rehabilitation of automotive assembly line tools
- Food production equipment maintenance (NBR compatible with food-grade lubricants)
Maintenance protocol:
Replace all seals during overhaul – partial replacement may cause uneven wear.
Lubricate components with ISO VG32 hydraulic oil before installation.
Torque end cover bolts to 12-15 N·m using crisscross pattern.
