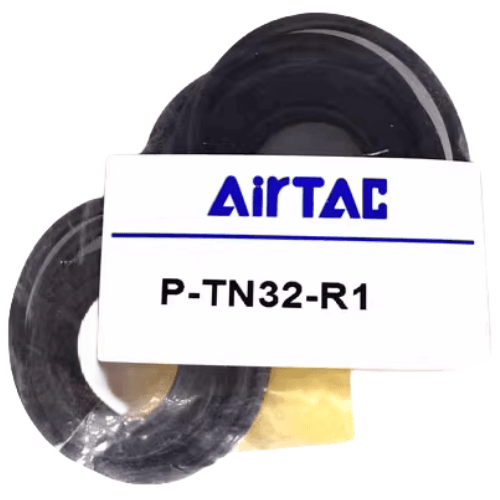

Airtac P-TN Repair Kit P-TN32-R1
$6.94
Regular price
$14.44
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
P-TN32-R1
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Product Category: Pneumatic Cylinder Seal Repair Kits
Brand: Airtac
Series: P-TN
Engineered for precision maintenance of pneumatic systems, Airtac P-TN Series Seal Repair Kits contain OEM-grade sealing components including wear bands, piston seals, and rod seals. Designed specifically for P-TN cylinder series, these kits ensure leak-free operation and extended service life in industrial automation applications. Compliant with ISO 6431 standards for dimensional compatibility and performance reliability.
Installation guidelines:
Replace all seals simultaneously using clean tools. Lubricate components with ISO VG32-grade
pneumatic oil before assembly. Perform 5-10 test cycles at 0.3MPa after repair.
AirTAC P-TN32-R1 Repair Kit Technical Details
- Model: P-TN32-R1
- Type: Pneumatic cylinder repair kit
- Compatible Models: TN32 series (TN32×10~TN32×200)
- Component Material: NBR/PU seals, CR rubber wipers
- Operating Temperature: -20℃ to 80℃
- Pressure Range: 0.05–1.0 MPa
- Fluid Compatibility: Air (ISO8573-1:2010 Class 3.4.3)

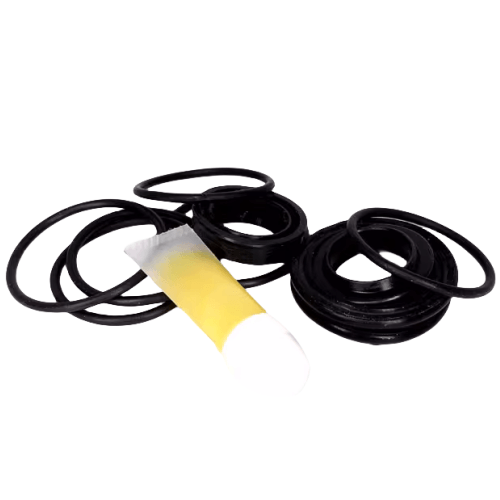

- Package Contents: 28 components including rod seals, piston seals, wear bands, O-rings
- Weight: 185g ±5g
- Dimensions: 120mm(L) × 85mm(W) × 25mm(H)
- Storage Life: 5 years in original packaging (25℃/60%RH)
- Certification: RoHS compliant
Complete overhaul kit for TN32 series compact cylinders, containing precision-molded replacement parts that meet original equipment specifications. Includes specialized anti-extrusion rings for high-cycle applications and low-friction guide elements for smooth operation.
Typical Applications:
- Preventive maintenance of automation equipment
- Overhauling pneumatic actuators in packaging machinery
- Rebuilding material handling cylinders in conveyor systems
- Maintenance of CNC machine tool clamps
- Repairing food processing pneumatic systems (non-contact areas)
Installation guidelines:
Replace all seals simultaneously using clean tools. Lubricate components with ISO VG32-grade
pneumatic oil before assembly. Perform 5-10 test cycles at 0.3MPa after repair.
Critical Note: Not suitable for vacuum applications or cylinders modified with
aftermarket components. Verify cylinder bore tolerance (H8) before installation.
