Airtac P-TR Repair Kit P-TR16-R1
AirTAC P-TR16-R1 Repair Kit Technical Details
- Model: P-TR16-R1
- Compatible Series: TR16 standard bore pneumatic cylinders
- Component Material: NBR (Nitrile) & PU (Polyurethane) seals
- Pressure Range: 0.1–0.9 MPa (14.5–130.5 PSI)
- Temperature Range: -20℃ to 80℃ (-4°F to 176°F)

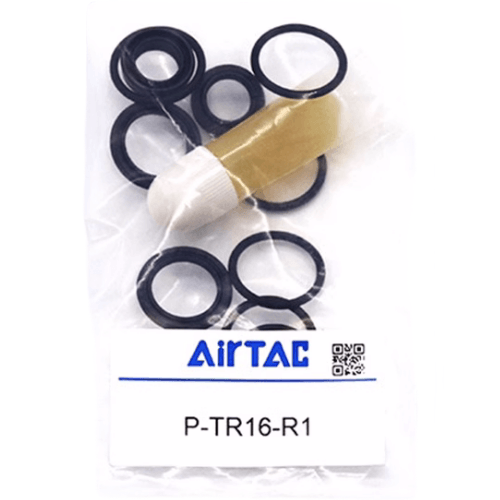

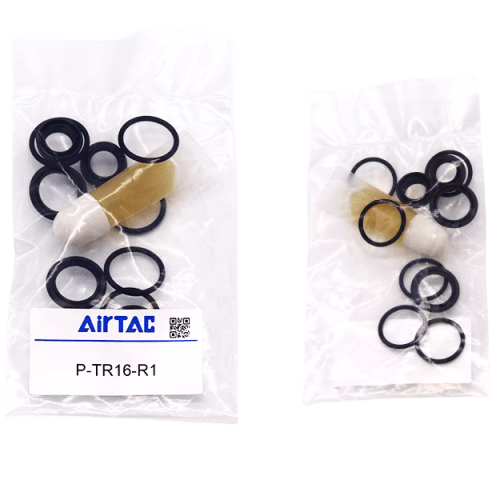

- Package Contents:
- Piston seals (2 pcs)
- Rod seals (2 pcs)
- Wiper seals (2 pcs)
- O-rings (6 pcs, various sizes)
- Backup rings (4 pcs)
- Lubrication grease (3g sachet)
- Weight: 118g ±5g (including packaging)
- Dimensions: 105mm(L) × 75mm(W) × 25mm(H)
- Storage Life: 5 years in original sealed packaging
- Compliance: RoHS 2.0 compliant
Complete overhaul kit for TR16 series cylinders, featuring wear-resistant compounds optimized for high-cycle applications. The precision-molded seals maintain ≤0.01mm dimensional tolerance, ensuring leak-free operation after maintenance. Includes factory-grade assembly grease specifically formulated for pneumatic components.
- Preventive maintenance for cylinders in 24/7 production lines
- Restoration of pneumatic actuators in automated packaging machinery
- Rebuilding food-grade equipment cylinders (compatible with NSF H1 lubricants)
- Field repair of material handling systems in logistics automation
- Disassemble cylinder using torque-controlled tools (max 2.5Nm)
- Clean components with non-petroleum solvent before installation
- Apply included grease to seal grooves before fitting new components
- Perform 50-100 test cycles before returning to full operation
Critical Note:
Do not mix old/new seal sets. Full kit replacement ensures proper compression balance.
Store unused seals in UV-protected environment.
