Airtac P-TR Repair Kit P-TR25-R1
AirTAC P-TR25-R1 Repair Kit Technical Details
- Model: P-TR25-R1
- Compatible Series: For Ø25mm bore PTR series cylinders
- Seal Material: Polyurethane (PU) & Nitrile Rubber (NBR)
- Temperature Range: -20℃ to 80℃ (continuous use)
- Pressure Range: 0.05–1.0 MPa

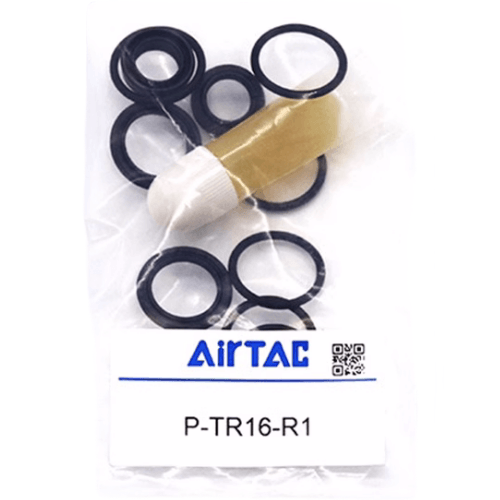

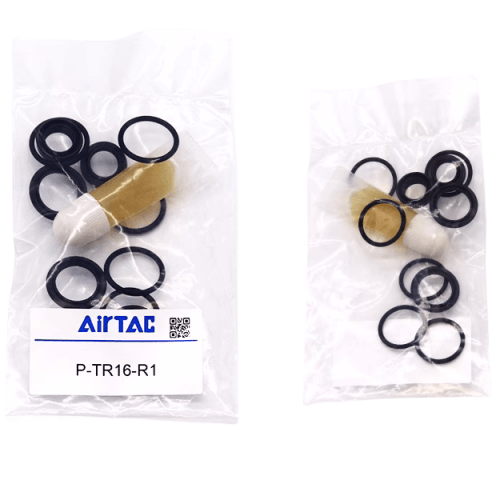

- Component Count: 12 pieces (includes piston seals, rod seals, wipers, O-rings)
- Weight: 85g ±2g
- Dimensions: 120mm(L) × 90mm(W) × 25mm(H)
- Storage Life: 5 years in original packaging
- Compliance: RoHS 2.0 compliant
- Packaging: Anti-static sealed pouch with moisture barrier
Complete maintenance solution for PTR25 pneumatic cylinders, containing wear-resistant seals designed for high-cycle applications. Features low-friction materials optimized for both pneumatic and low-vacuum operations. Kit includes specialized C-shaped piston seals for bidirectional pressure containment.
- Preventive maintenance of automated assembly line actuators
- Overhauling contaminated cylinders in food processing equipment
- Replacement of worn seals in packaging machinery vertical actuators
- Restoring precision in semiconductor handling robots
- Emergency repair kits for injection molding machine ejectors
Maintenance protocol:
Replace all seals simultaneously using cleanroom-grade lubricant (ISO VG10-15).
Torque end caps to 3.5-4.0 N·m using crisscross pattern. Pressure test at
0.8 MPa before returning to service.
| Property | Property Value |
|---|---|
| sku | P-TR25-R1 |
