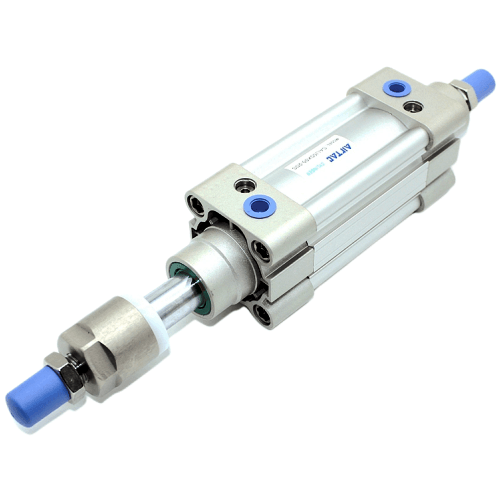

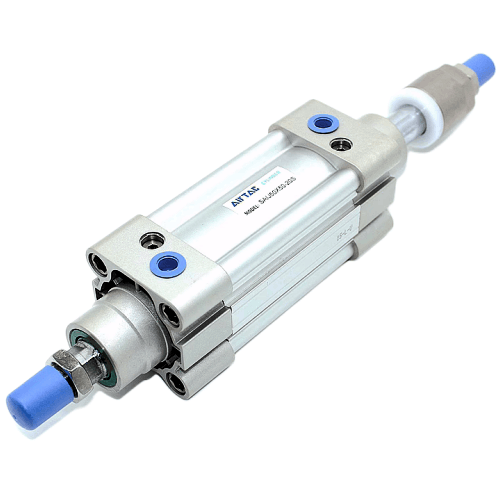

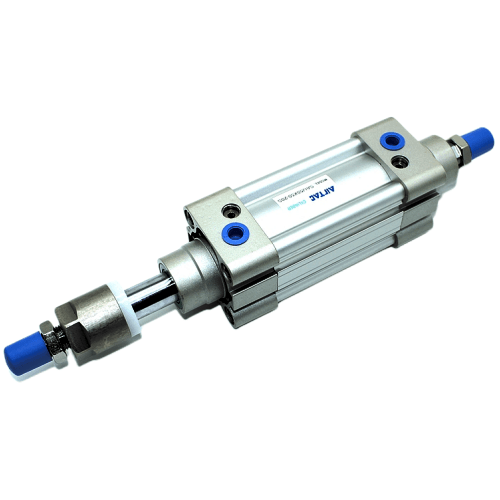

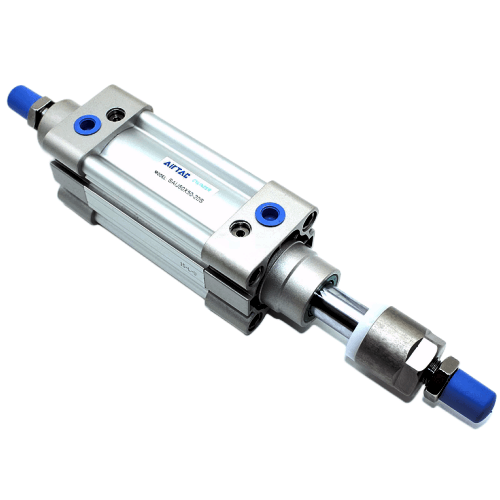

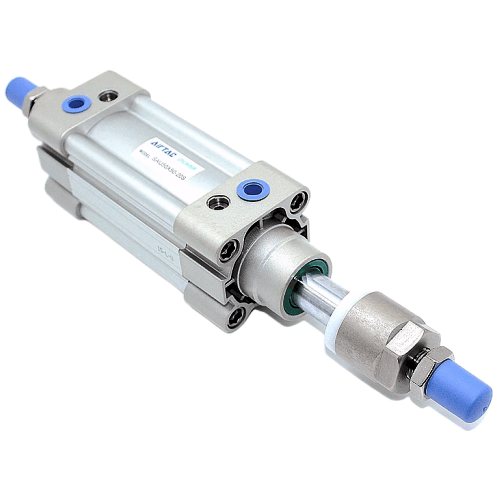

Airtac SAIJ50 Adjustable Cylinder SAIJ50BX900-75S
2. Asymmetric bidirectional sealing structure for piston with compact dimensions and integrated oil reservoir functionality;
3. Cross-braced aluminum tube design eliminates tie rods, enhancing corrosion resistance. External sensor mounting grooves enable rapid installation;
4. Smooth cushioning adjustment mechanism for stable operation;
5. Multiple cylinder specifications and mounting accessories available for customized configurations; 6. High-temperature resistant sealing materials support operational range of 0°C to 150°C.
Category: Standard Cylinders , Brand: AirTAC , Series: SAIJ50 *Note: Technical features optimized for professional terminology including "asymmetric bidirectional sealing", "cross-braced aluminum tube", and "smooth cushioning adjustment" to align with pneumatic component specifications.*
AirTAC SAIJ50BX900-75S Adjustable Stroke Cylinder Specifications
- Model: SAIJ50BX900-75S
- Type: Double-acting adjustable stroke cylinder
- Bore size: Ø50 mm
- Stroke length: 900 mm (adjustable)
- Operating pressure: 0.05–1.0 MPa
- Temperature range: -20℃ to 80℃
- Port size: Rc1/4 (NPT1/4 optional)
- Cushioning: Adjustable pneumatic cushion
- Mounting style: Basic type (no built-in mounts)
- Rod material: Hard chrome-plated steel
- Tube material: Aluminum alloy with oxidation resistance
- Seal material: NBR + PU combination
- Weight: Approximately 4.8 kg
- Dimensions (L×W×H): 1,180mm × 60mm × 60mm (full extension)
High-precision industrial cylinder featuring infinite stroke adjustment through integrated mechanical stops. The 3-stage anodized barrel provides enhanced wear resistance in humid environments. Includes shock-absorbing end caps with 270° rotatable cushion needles for precise deceleration control.
- Variable position material handling systems
- Plastic injection molding machine ejectors
- Automated warehouse stacker cranes
- Glass tempering furnace door actuators
- PCB drilling equipment positioning
Installation note:
Maintain 0.5-1mm alignment tolerance during mounting. Lubricate with ISO VG32 hydraulic oil
during initial setup. Stroke adjustment must be performed at 0.3MPa or lower pressure.
| Property | Property Value |
|---|---|
| sku | SAIJ50BX900-75S |
| Adjustable Stroke | 75mm |
| Seal Material | Polyurethane |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/4 |
| Magnet | S-Magnetic |
| Bore Diameter | <50mm> |
| Stroke | <900mm> |
